OKUMA CAPTAIN "Big Bore" L-370 CNC
TURNING CENTER
Model 780-BB, S/N 012001-0015, New 2001
Stock# K13177
EQUIPPED WITH:

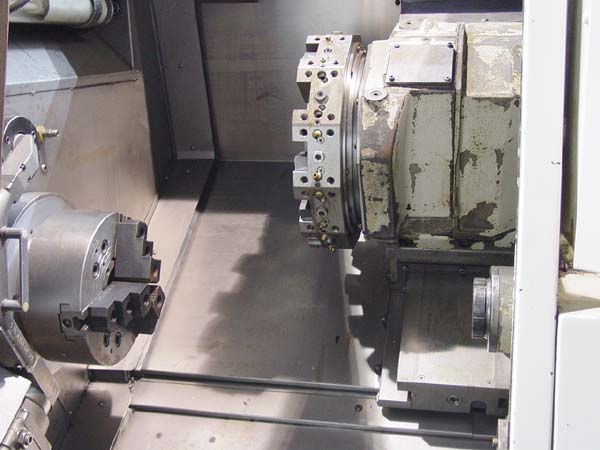

Okuma E100L CNC Control w/CRT, IGF
Programming System, 3.15" Big Bore
Spindle Bore Option, 3D Animation, Tool Life Management, Touch Setter,
Circular Interpolation, Bed Mounted Programmable Tailstock, Auto

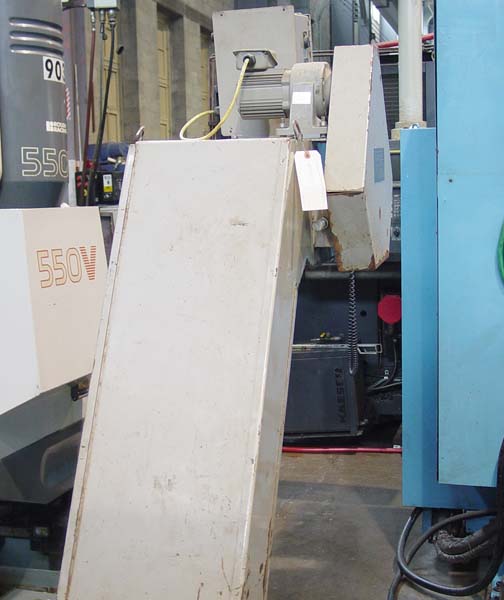

Backlash Compensation, Coolant System, and Chip Conveyor.
CATALOGUE SPECIFICATIONS:
Max Swing Over Bed...................................... 20.08"
Maximum Turning Diameter................................ 14.56"
Maximum Turning Length.................................. 20.47"
Chuck Size.............................................. 10"
Cross Travel (X-Axis)................................... 10.23"
Longitudinal Travel (Z-Axis)............................ 20.47"
Feed Range (Infinitely Variable)........................ .1-400 IPM
Rapid Traverse Rate (X-Axis)............................ 787 IPM
Rapid Traverse Rate (Y-Axis)............................ 984 IPM
Number of Turrets....................................... 1
Tool Positions.......................................... 12 Total
Spindle Bore............................................ 3.15"
Spindle Nose............................................ A2-8
Spindle Speed Range (1 RPM Increments).................. 75-3800 RPM
Spindle Horsepower...................................... 20 HP
Approximate Machine Dimensions.......................... 104" x 73"
Approximate Machine Height.............................. 69"
Approximate Machine Weight.............................. 9,000 LBS
CONDITION: Machine Appears to be in Very Good Condition !!
