1999

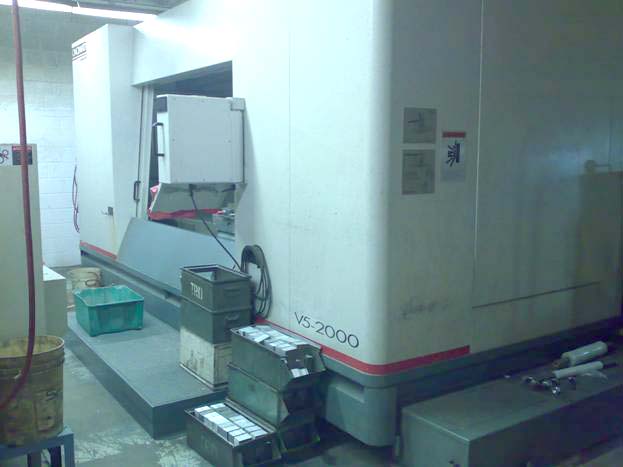

Cincinnati Model V5-2000 5-Axis Vertical Machining Center
Specifications
Travels (X-Y-Z) 80" x 30' x 30"
Spindle: 15,000rpm 35HP HSK-63A Taper

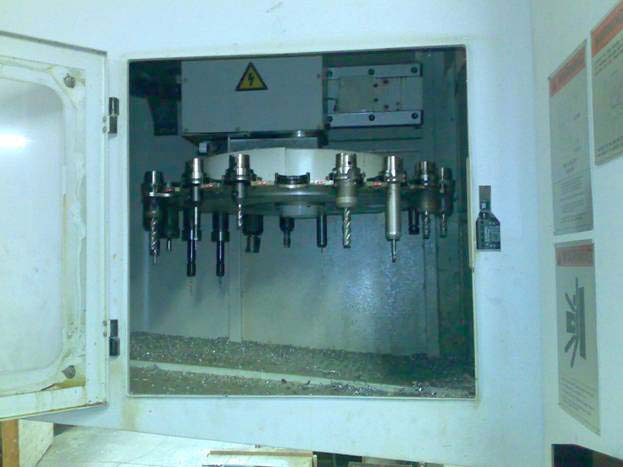

ATC: 21 Tool
Floor Space: 279" x 164"x 149"
Max Tool Weight: 22LB
Max Length of Tool: 12"
Machine Weight: 33,450 LB
Features
* +/- 40 degrees of tilt on the head
* Linear scales on all axes
* Acramatic A-2100 CNC Control
