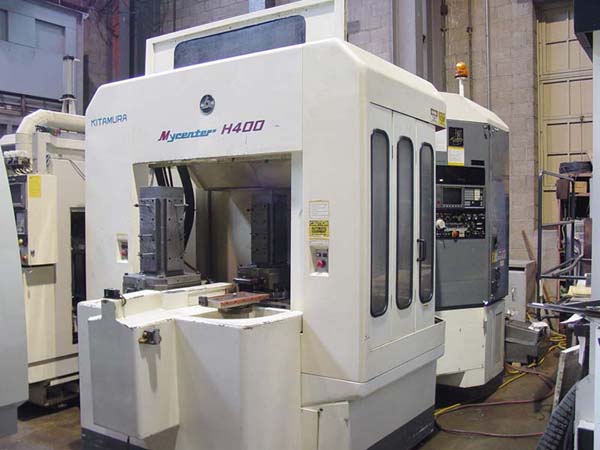

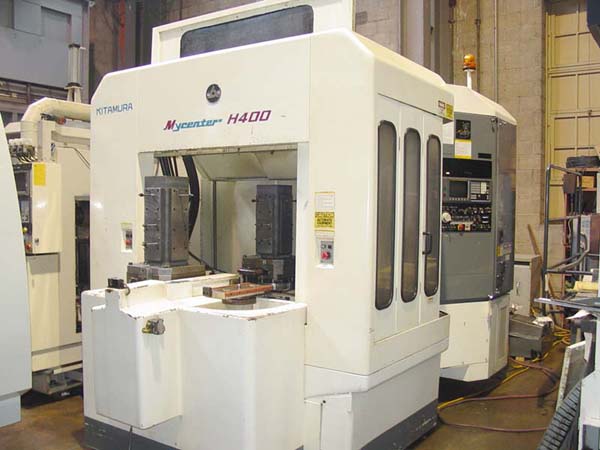

KITAMURA H-400 CNC HORIZONTAL MACHINING CENTER
Model H-400, New 1995 Stock # K13197
EQUIPPED WITH:

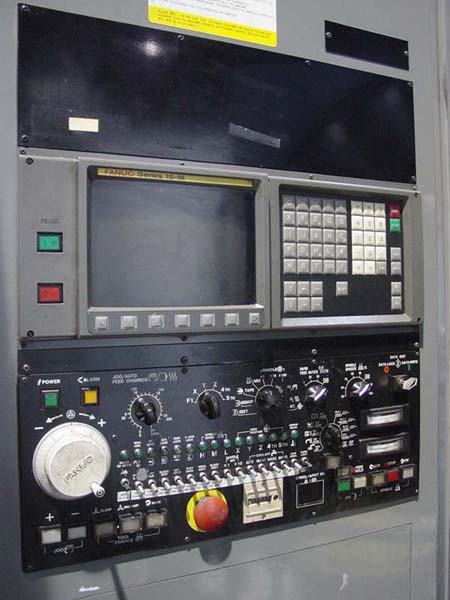

Fanuc 15M CNC Control w/CRT, Multiple Part Program Storage, RS-323 Port,
(2) 15.7" x 15.7" Pallets, Full Contouring 4th Axis Pallet Rotation, 100
Station Automatic Tool Changer, Full Coolant Enclosure, 10000 RPM
Spindle, Arranged for Thru-the-Spindle Coolant, Chip Conveyor and
Coolant System.
CATALOGUE SPECIFICATIONS:
Longitudinal Travel (X-Axis) ........................... 24"
Vertical Travel (Y-Axis) ............................... 20"
Spindle Travel (Z-Axis) ................................ 20"
Pallet Dimensions ...................................... 15.7"x 15.7"
Maximum Pallet Load .................................... 880 LBS
Number of Pallets ...................................... 2
Number of Index Positions............................... 360,000
Feed Rate, All Axes .................................... .1-393.7 IPM
Rapid Traverse, All Axes ............................... 945 IPM
Spindle Horsepower...................................... 20 HP
Spindle Speed Range (2 Range)........................... 120-10,000 RPM
Spindle Taper .......................................... #40 Taper
Number of Tool Stations ................................ 100
Electrics .............................................. 460/3/60
Approximate Floorspace Dimensions ...................... 132" x 132"
Approximate Machine Height ............................. 122"
Approximate Machine Weight ............................. 24,000 LBS
CONDITION: Appears to be in Excellent Condition !
