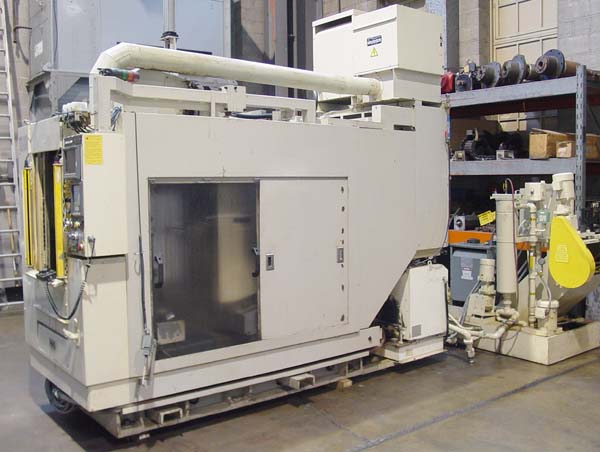

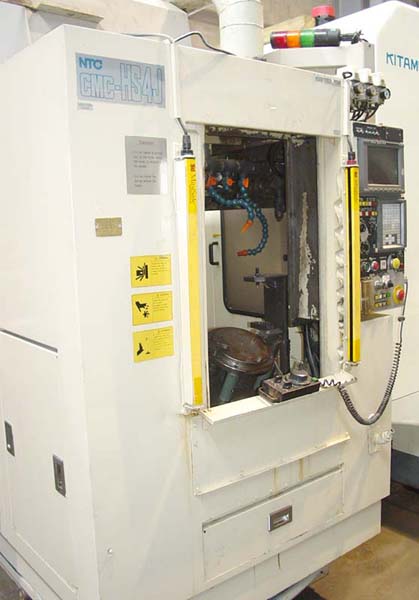

NTC CMC HSJ4 4-AXIS HORIZONTAL MACHINING CENTER

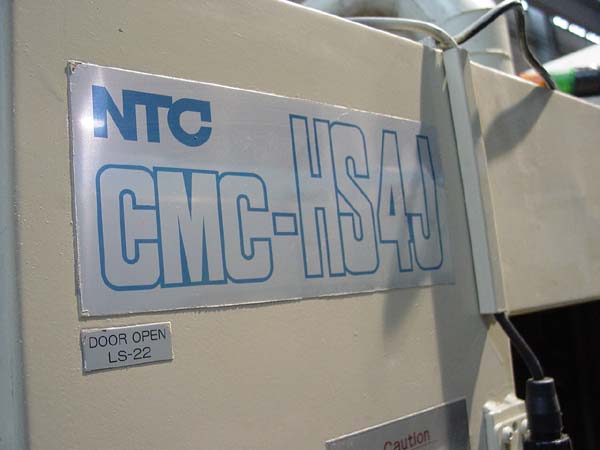

           Model CMC-HS4J, S/N M470065, New 1995, Stock# K13198



EQUIPPED WITH:

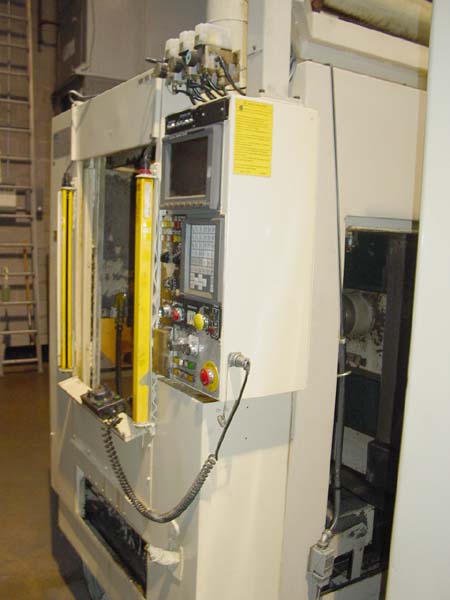

Fanuc 21M CNC Control w/CRT, Multiple Part Program Storage, RS-323 Port,

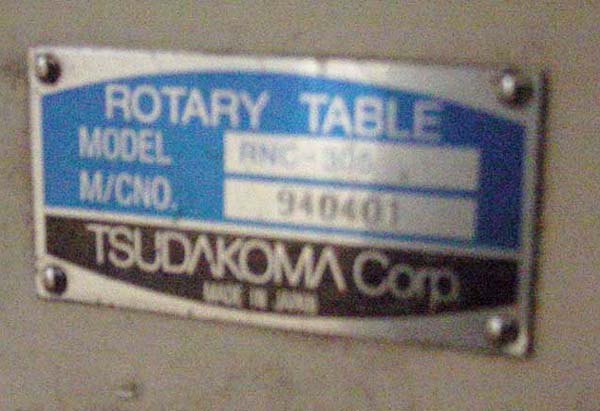

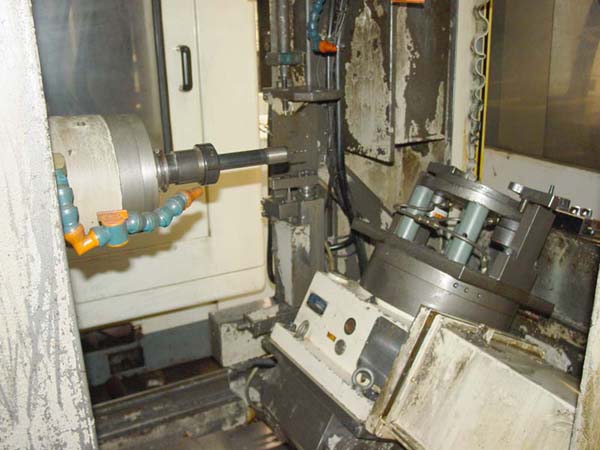

1-1/2" Tsudakoma Tilting Rotary Table, Full Contouring 4th Axis, Table
Tilts in and out for Loading and Positioning, 16 Station Automatic Tool
Changer, Full Coolant Enclosure, 10000 RPM Spindle, Chip Conveyor and
Coolant System.


CATALOGUE SPECIFICATIONS:
Longitudinal Travel (X-Axis) ........................... 19.685"
Vertical Travel (Y-Axis) ............................... 15.748"
Spindle Travel (Z-Axis) ................................ 15.748"
Table Dimensions ....................................... 12.5" Diameter
Number of Index Positions............................... 360,000
Feed Rate, All Axes .................................... .1- 700 IPM
Rapid Traverse, All Axes ............................... 1400 IPM
Spindle Horsepower...................................... 15 HP
Spindle Speed Range .................................... 120-10,000 RPM
Spindle Taper .......................................... #40 Taper
Number of Tool Stations ................................ 16
Electrics .............................................. 460/3/60
Approximate Floorspace Dimensions ...................... 86" x 182"
Approximate Machine Height ............................. 122"
Approximate Machine Weight ............................. 18,000 LBS



CONDITION: Appears to be in Excellent Condition !
