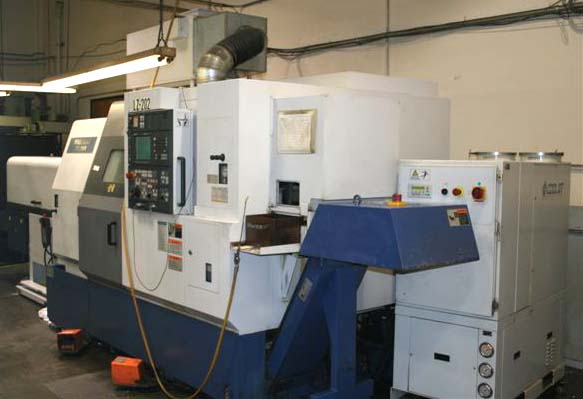

MORI SEIKI ZL-200SMC DUAL TURRET CNC TURNING
CENTER
With LIVE TOOLING and SUB-SPINDLE
Model ZL-200SMC, New 2000
Stock # K13199
EQUIPPED WITH:

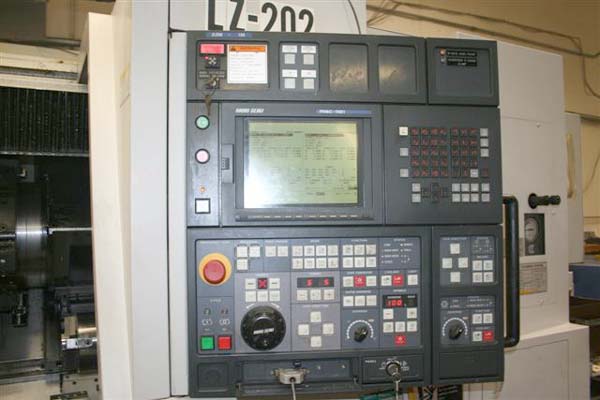

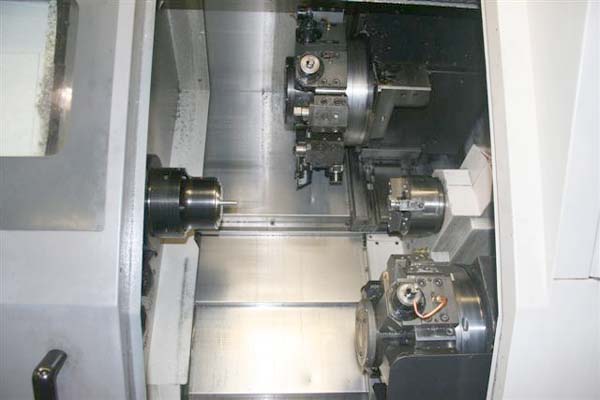

Mori Seiki MSC501 Fanuc CNC Control, Twin Turrets With Live Tooling, Sub

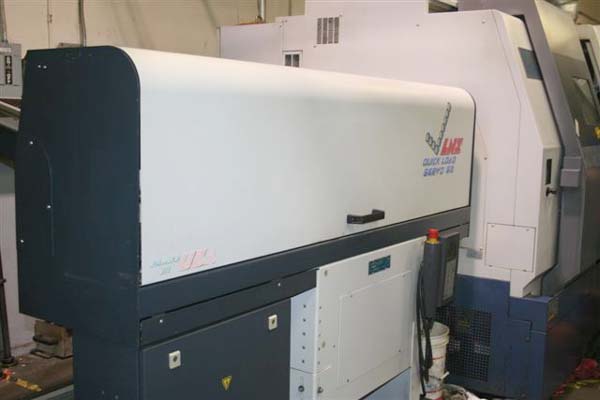

Spindle, Part Catcher, Tool Setter, LNS Quick Load Servo S2 Bar Feeder,
Mist Collector, Cool Jet Chiller System, Tooling Package that Includes

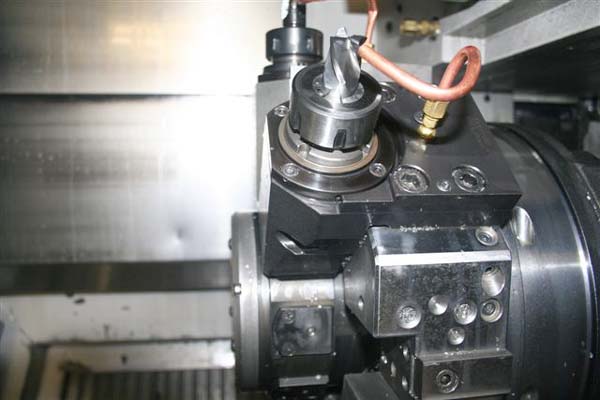

(5) Driven Live Tool Holders, 8" 3-Jaw Chuck on the Main Spindle, 6"
3-Jaw Chuck on the Sub-Spindle, Chip Conveyor, Coolant System.
CATALOGUE SPECIFICATIONS:
Max Swing Over Bed..................................... 26.7"
Max Swing Over Cross Slide............................. 20.0"
Maximum Turning Diameter............................... 16.6"
Maximum Turning Length................................. 20.87"
Standard Chuck Size.................................... 8"
Cross Travel Turret 1 (X1-Axis)........................ 9.3"
Longitudinal Travel Turret 1 (Z1-Axis)................. 20.5"
Cross Travel Turret 2 (X2-Axis)........................ 6.9"
Longitudinal Travel Turret 2 (Z2-Axis)................. 19.3"
Rapid Traverse Rate (X1, X2 Axes)...................... 709 IPM
Rapid Traverse Rate (Z1, Z2 Axes)...................... 9450 IPM
Number of Turrets...................................... 2
Tool Positions Turret 1................................ 12
Tool Positions Turret 2................................ 8
Spindle Bore........................................... 3"
Spindle Nose........................................... A2-6
Spindle Speed Range.................................... 40-4000 RPM
Spindle Horsepower..................................... 15 HP
Approximate Machine Dimensions......................... 158" x 85"
Approximate Machine Height............................. 80"
Approximate Machine Weight............................. 12,840 LBS
CONDITION: From a High Tech West Coast Plant. Holds Tenths 24/78.
This Machine Appears to be in Excellent Condition!
