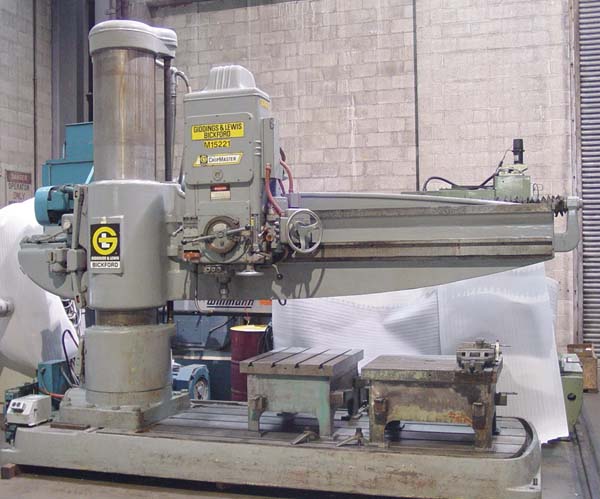

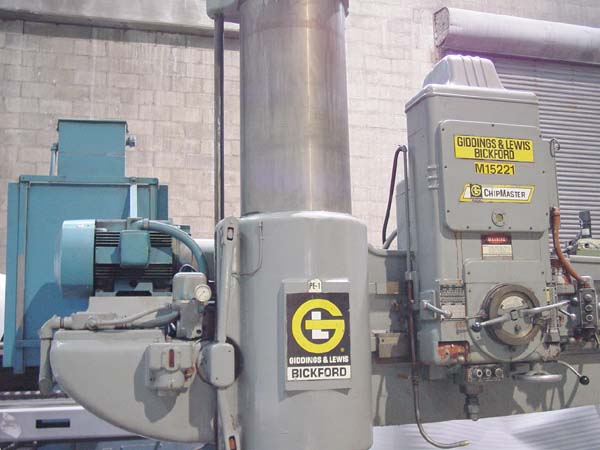

8' x 19" GIDDINGS & LEWIS RADIAL DRILL
        Model 956, New 1981, S/N 956-00387-81
                        Stock # K13201



EQUIPPED WITH:



Power Elevation, Power Clamping on Arm, Power Clamping on Head, Rapid
Traverse on Head, (2) T-Slotted Box Tables, Coolant System.



CATALOGUE SPECIFICATIONS:



Arm Length............................................ 8'
Column Diameter....................................... 19"
Working Surface of Base (T-Slotted)................... 50" x 100"
Vertical Spindle Travel in Head....................... 20"
Distance Spindle to Base, Maximum..................... 78""
Distance Spindle to Base, Minimum..................... 16"
Face of Column to Spindle, Maximum.................... 97"
Face of Column to Spindle, Minimum.................... 19-1/4"
Spindle Taper......................................... #6 MT
Spindle Speeds........................................ 14 to 1750 RPM
Spindle Feeds......................................... .004 to .125 IPM
Tapping Leads......................................... 8 to 27 TPI
Motor................................................. 30 HP
Electrics............................................. 440/3/60
Height of Base........................................ 10"
Approximate Machine Dimensions........................ 60" x 182"
Approximate Machine Height ........................... 141"
Approximate Machine Weight............................ 30,500 LBS



CONDITION: Appears to be in Excellent Condition !
