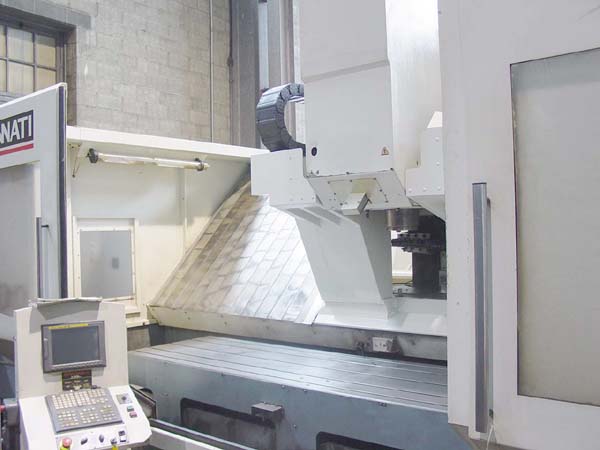

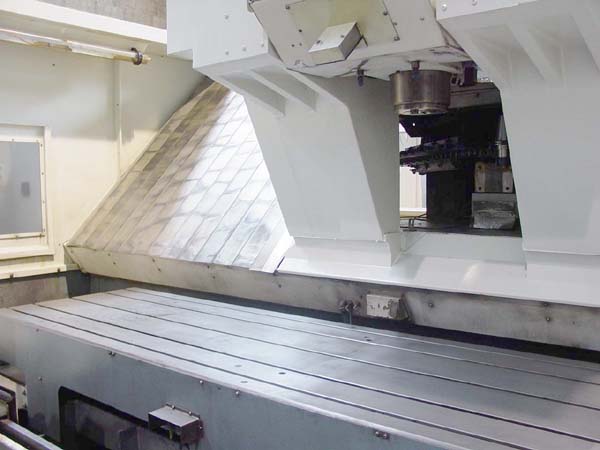

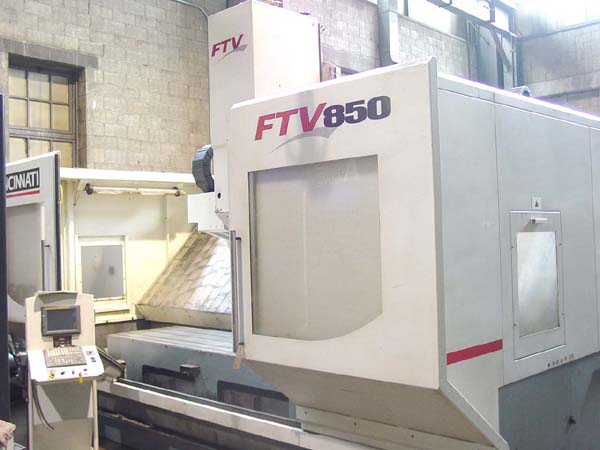

CINCINNATI LAMB FTV850-2500 VERTICAL MACHINING CENTER
                          New 2005, Stock# K13204



EQUIPPED WITH:



Fanuc 18MB CNC Control, Hand Held Pendent, Rigid Tapping, 36 Station
Automatic Tool Changer, Heavy Duty 40 HP Cat-50 Spindle, Auto Coolant,
Full Coolant Enclosure,  Spindle Load Meter, Chip Conveyor and
Coolant System.



CATALOGUE SPECIFICATIONS:



X Travel (Longitudinal)............................... 100"
Y Travel (Cross)...................................... 32
Z Travel (Vertical)................................... 31.5
Table Working Surface................................. 32"x 123.6"
Table Work Load Capacity.............................. 18,000 LBS
Spindle Horsepower.................................... 40 HP
Spindle Speeds........................................ 30-6000 RPM
Spindle Torque........................................ 600 ft.lbs.
Spindle Taper......................................... #50 CAT
Rapid Traverse ,...................................... 1500 IPM
Feedrates............................................. 787 IPM
Tool Storage Capacity................................. 36
Approximate Dimensions................................ 11'6" x 19'3"
Approximate Height.................................... 143"
Approximate Weight.................................... 40,000 LBS



CONDITION:  This Machine Appears to be in Excellent Condition !
