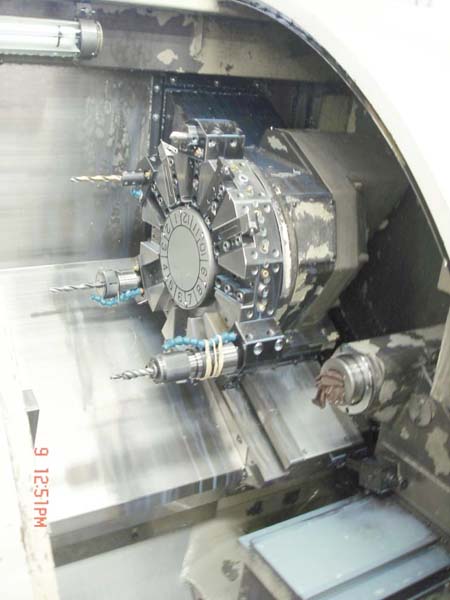

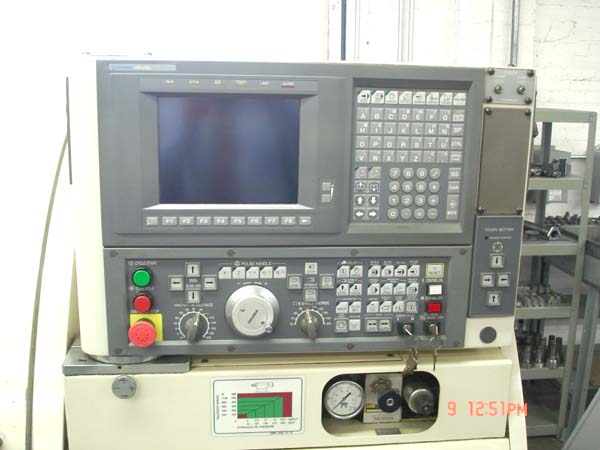

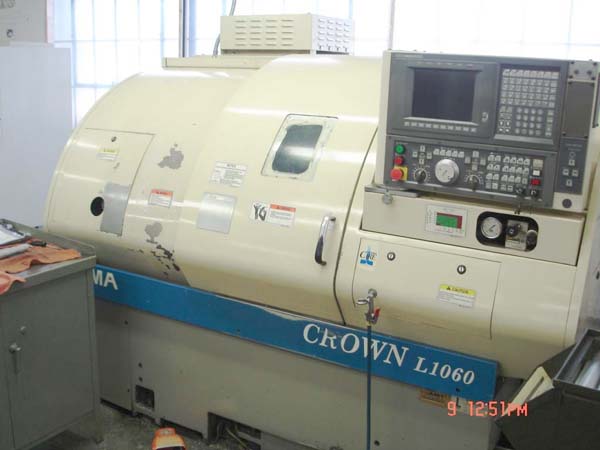

Okuma OSPU10L CNC Control w/CRT, 8" 3-Jaw Power Chuck, 12 Position
Servo Turret, Circular Interpolation, Bed Mounted Tailstock, NC
Torque Limit, Inch/Metric Switchable, LAP 4, Nose-R 2, Animation,
Expanded Auto Chamfering, Cycle Time Calculator, MAC MAN, Auto Lube,
Work Light, Coolant System, and Chip Conveyor.
CATALOGUE SPECIFICATIONS:
Max Swing Over Bed...................................... 21.65"
Maximum Swing over Cross-Slide.......................... 15.75"
Maximum Turning Diameter................................ 10.63"
Maximum Turning Length.................................. 19.68"
Standard Chuck Size..................................... 8"
Cross Travel (X-Axis)................................... 7.28"
Longitudinal Travel (Z-Axis)............................ 20.47"
Feed Range (Infinitely Variable)........................ .1-400 IPM
Rapid Traverse Rate (X-Axis)............................ 590 IPM
Rapid Traverse Rate (Y-Axis)............................ 787 IPM
Number of Turrets....................................... 1
Tool Positions.......................................... 12 Total
Spindle Bore............................................ 2.44"
Spindle Nose............................................ A2-6
Spindle Speed Range (1 RPM Increments).................. 75-4200 RPM
Spindle Horsepower...................................... 18 HP
Electrics............................................... 208/3/60
Approximate Machine Dimensions.......................... 104" x 73"
Approximate Machine Height.............................. 69"
Approximate Machine Weight.............................. 9,670 LBS
