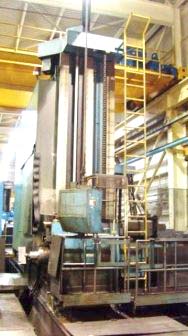

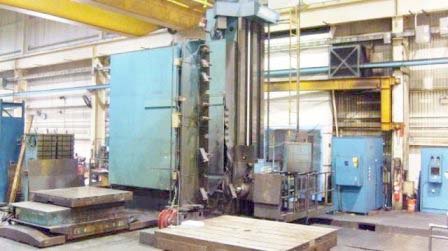

GIDDINGS & LEWIS 7" CNC FLOOR
TYPE HORIZONTAL BORING MILL
MODEL# H-70-FX
S/N: 465-22-00
MFG. 2001
SPECIFICATIONS:
Spindle Diameter: 7"
Taper In Spindle: Cat 50 ANSI B5.50
Vert. Travel of Head, Y-Axis: 144"
Column Travel, X-Axis: 384"
Spindle Travel, Z-Axis: 60"
Spindle Speeds: 12-2200 RPM
Feeds, X,Y,Z,W-1,W-2: 0.01 to 150 IPM
Rapid Traverse, X-Axis: 400 IPM
Rapid Traverse, Y-Axis: 500 IPM
Rapid Traverse, Z-Axis: 600 IPM
Rapid Traverse, W-1 & W-2 Axis: 150 IPM
Width of Bedways: 60"
EQUIPPED WITH:

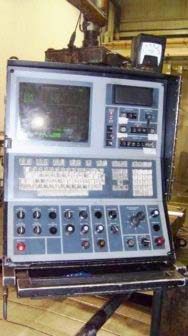

Giddings & Lewis 8000B CNC Control (DNC Capable)
AC Servo Drives On All Axes
124-Station Automatic Tool Changer
20 Position Tool Rack
Thermal Compensation for Z-Axis
Numeriprobe Part Probing System
Visual Uptime Management
Flood and Thru Spindle Coolant
External Flood Coolant

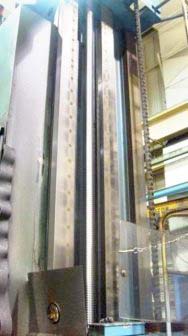

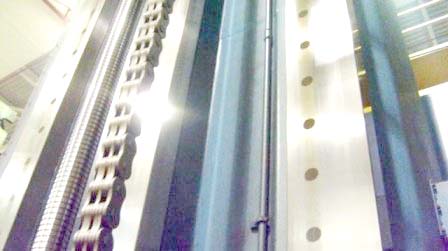

3-Way Column with Replacable Hardened & Ground Box Ways
Roll-Up Type Way Covers
Hanson Oil Chiller

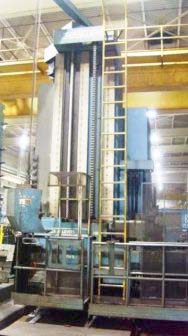

Operators Platform with Power Elevation
Ladder and Verticaly Adj Pendant
Trabon Automatic Lubrication System
Complete Set of Machine and Foundation Drawings
Quick Disconnect Electrics
107 HP Spindle Drive 460/3/60 Cycle
CNC Infeeding Rotary Table Specifications: #1
Serial No.: 040-2254-00
Rotary Table Size, Model 360C: 72" x 84"
Table Platen Size: 96" x 102"
Table Infeed: 96"
Table Load Capacity: 100,000 LBS
B-Axis Rotation (Contouring): 360,000 Positions
Table Rotation Speed: 1 RPM
CNC Infeeding Rotary Table Specifications: #2
Serial No.: 040-2255-00
Rotary Table Size, Model 360P: 72" x 72"
Table Platen Size: 72" x 78"
Table Infeed: 48"
Table Load Capacity: 44,000 LBS
B-Axis Rotation (Positioning): 360,000 Positions
Table Rotation Speed: 1 RPM
