2001

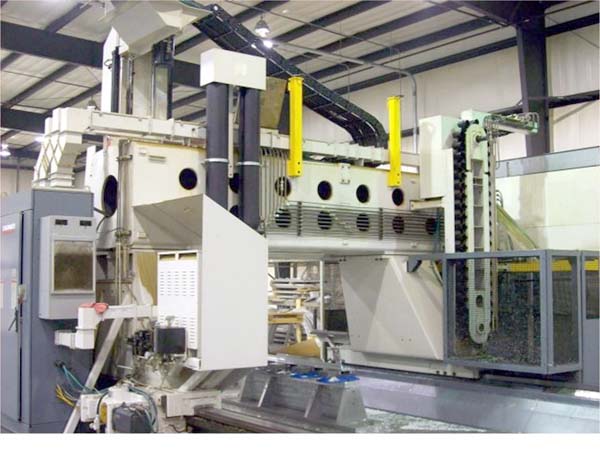

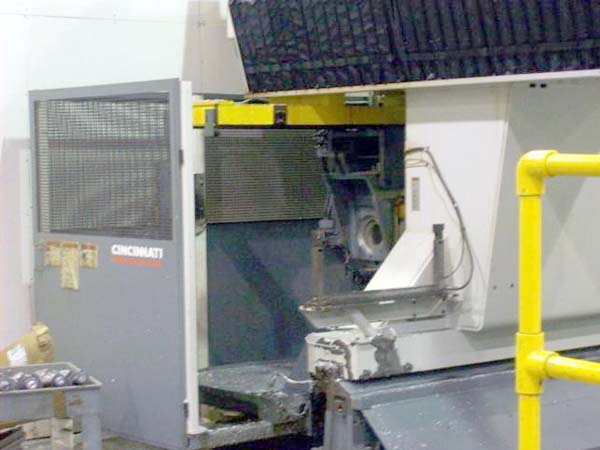

Cincinnati U-5 5-Axis Rail Type CNC Profiler
In Service in Midwest Plant Available for Inspection Under Power
Specifications
Travels : X 360" x Y 144" x Z 39.4"
Feedrates: X-Axis 600imp, YZ Axes 787ipm
A-Axis: +100/-90 degrees, 2880dpm 8rpm
C-Axis: Full 360 degrees, 2880dpm 8rpm
Spindle: 4000 rpm, 50 taper

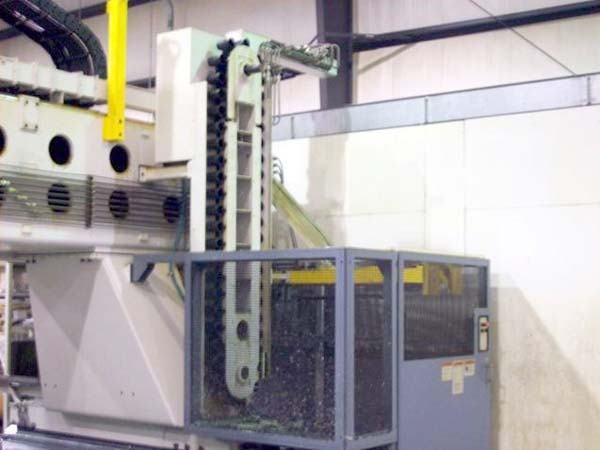

ATC: 45-Station
Features
* 5-Axis contouring gimbal type head

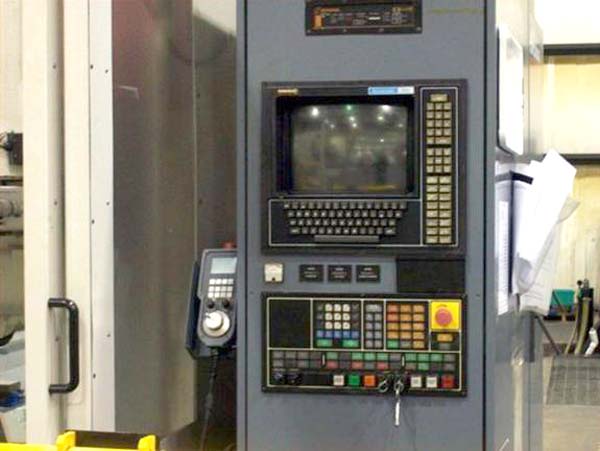

* Acramatic A950MC CNC Control
* Mayfran Concept 2000 Chip Conveyor System
* Renishaw Model M1-16MK2 Probe System
* Blum Integrated Laser Tool Calibration System
