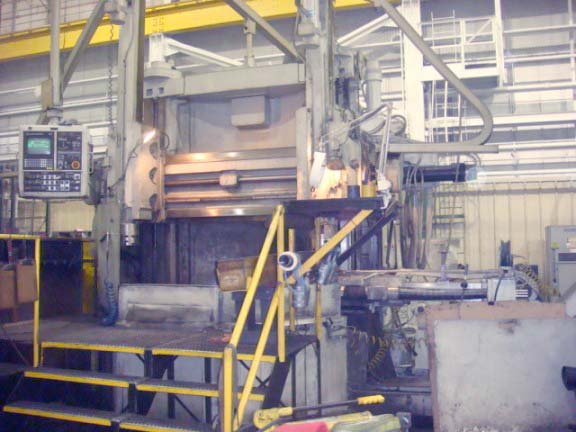

76" BULLARD DYNATROL CNC VERTICAL BORING
Mill
Remanufactured in 1986
2-Vertical Rams
1-Side Head
EQUIPPED WITH:

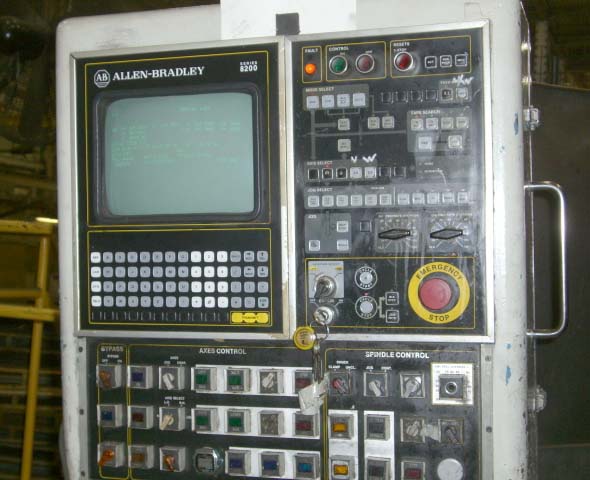

Allen Bradley 8200 CNC Control
Spaulding Compumotor Digital Readout System

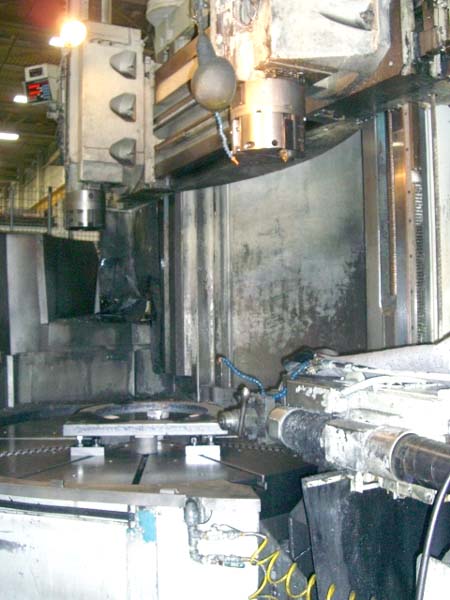

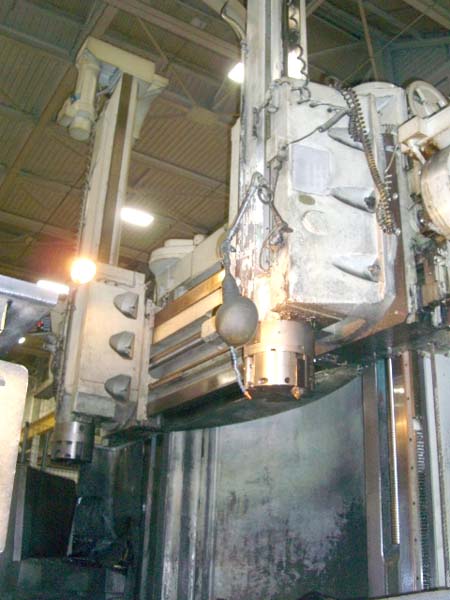

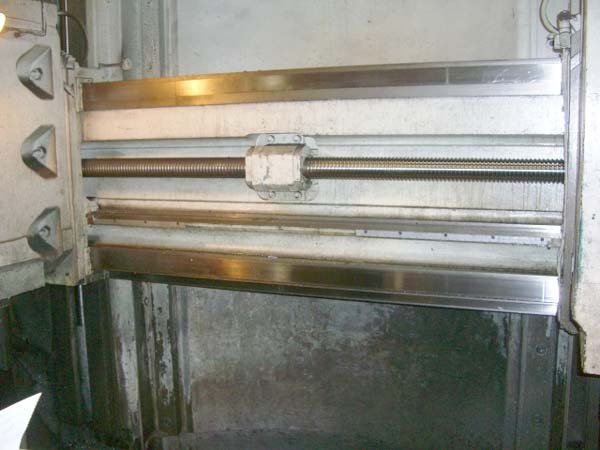

2-Vertical Rams on Cross Rail (CNC Controls)
1-Right Hand Horizontal Side Head (Manual Control)
Power Indexing Tool Blocks on Both Vertical Rams

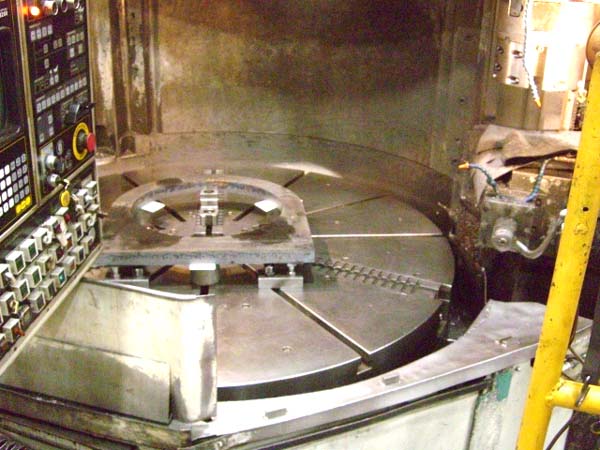

76" 3-Jaw Hydraulic Power Chuck with Jaws
Traban Lubrication System
Coolant

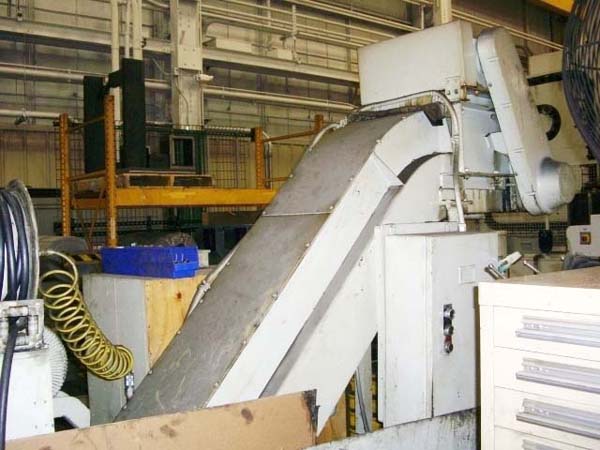

Mayfram Chip Conveyor
Splash and Chip Guards
100 HP Main Drive Motor
SPECIFICATIONS
Table Diameter 76"
Maximum Swing without Side Head 88"
Maximum Swing with Side Head 82"
Maximum Height Under Cross Rail 76"
Vertical Ram Travel, Left 72"
Vertical Ram Travel, Right 60"
Table Speeds: 2-Ranges 0-210 RPM
Feeds: .001-.500 IPR
Floor Space: 20'6" L-R, 16'3" F-B, 18'11" High
Approx. Weight 107,000 Lbs
