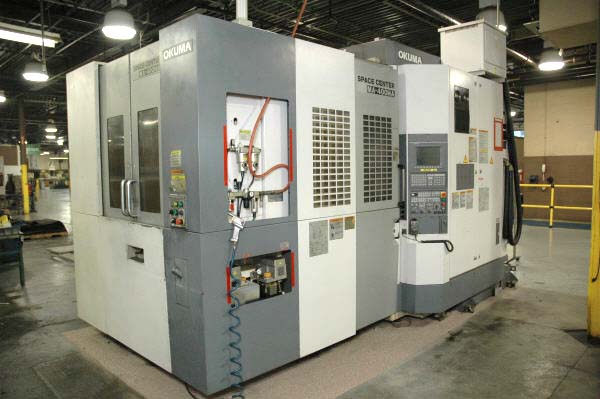

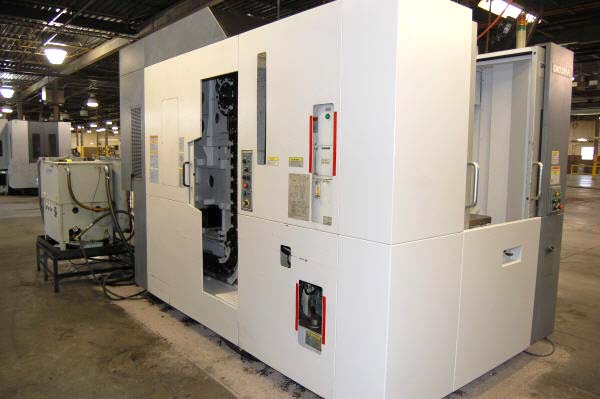

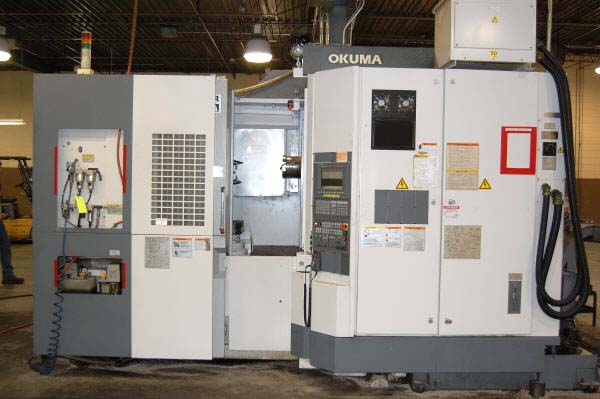

MA400HA OKUMA "SPACE-CENTER" 3-AXIS CNC HORIZONTAL
  MACHINING CENTER w/2-PALLET-SHUTTLE
New March 2004, Model MA400HA, Stk# K13220

EQUIPPED WITH:
Okuma OSP-E100M CNC Control w/4th-Axis Capabilities

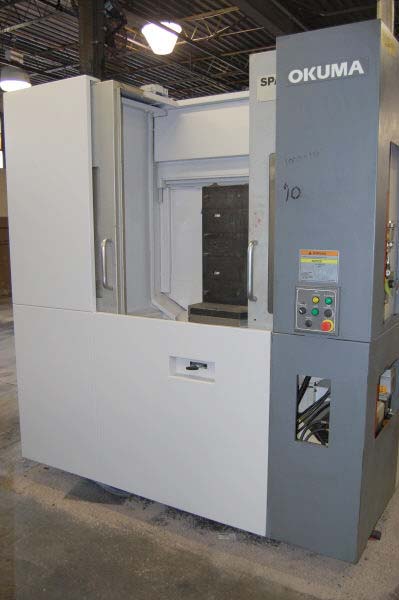

(2) 15.75" x 15.75" 1-Degree Pallet w/Pallet-Shuttle

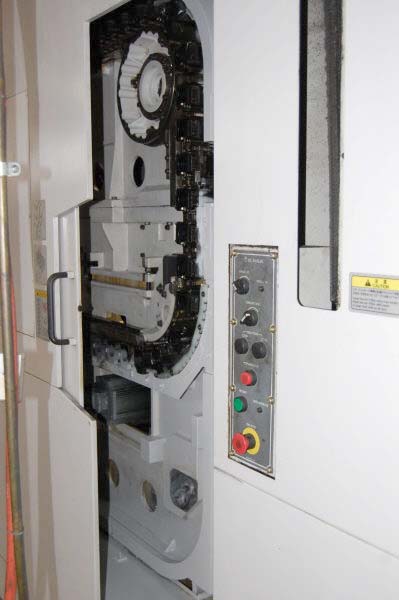

40-Position Automatic Tool Changer
Chip Blaster Model J8-1000 Hi-Pressure CTS System
Chip Conveyor
Tombstones
CATALOGUE SPECIFICATIONS:
Pallet Shuttle Dimensions, W x L....... 15.75" x 15.75"
Pallet Load Capacity................... 880 LBS
X-Axis Column Longitudinal Travel...... 22.05"
Y-Axis Head Vertical Travel............ 24.02"
Z-Axis Table Cross Travel.............. 24.61"
Spindle-Center to Table-Top, Minimum... 1.97"
Spindle-Center to Table-Top, Maximum... 25.98"
Spindle Taper.......................... #40 NT
Tool Diameter w/Adjacent Tool, Maximum. 3.94"
Tool Diameter w/o Adjacent Tool, Maximum.. 5.91"
Tool Length, Maximum................... 11.81"
Tool Weight, Maximum................... 22 LBS
Spindle Speeds Range, Infinitely Var... 50 to 8000 RPM
Jog Feedrate Range..................... 0.04 to 2362 IPM
Rapid Traverse Rate.................... 1970 IPM
Spindle Motor, 15-Minute Rating........ 20 HP
Floor Space Required, L x W............ 14'9" x 7'11"
Weight, Approximately.................. 25080 LBS

CONDITION: 4 Machines Available.  Appear to be in Very Good Condition.
