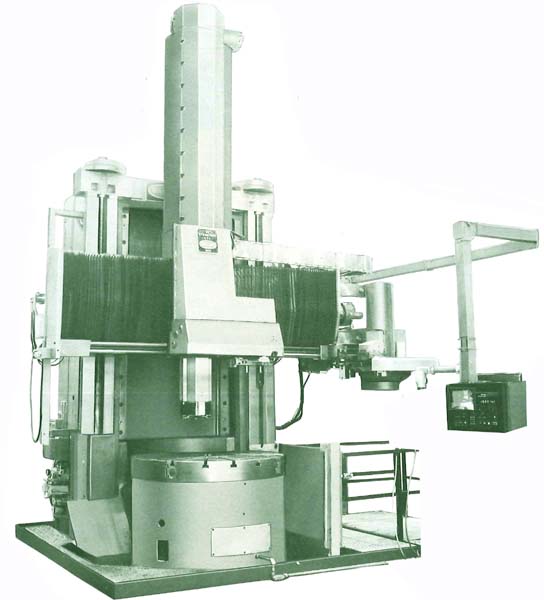

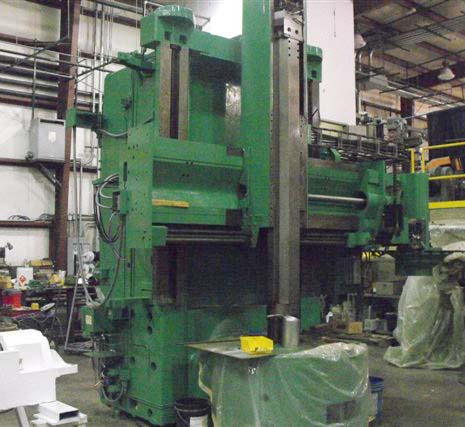

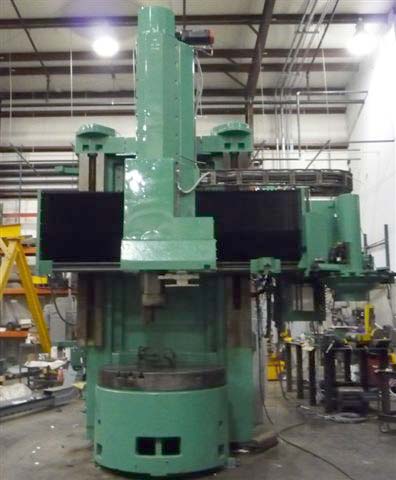

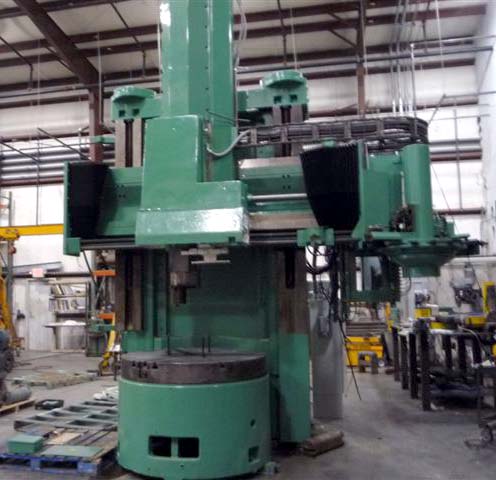

56" BULLARD CNC VERTICAL
BORING MILL
Model Dyna-Au-Tape, Retrofit and Reconditioned 2009
Stock# K13228
EQUIPPED WITH:
New Fanuc 21i CNC Control Color CRT, Manual
Pulse Generator, Multiple

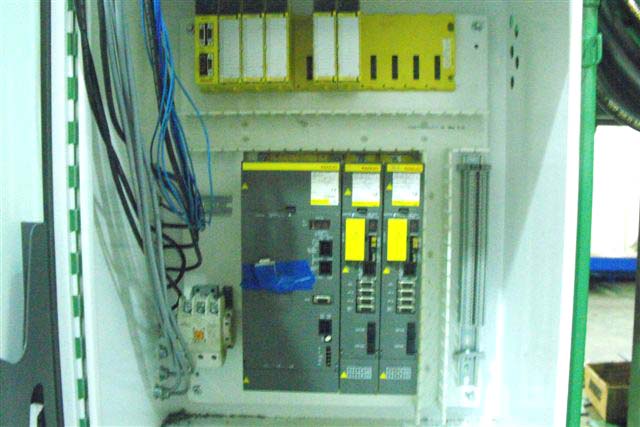

Part Program Storage, New Fanuc Axis Drives and Axis Drive Motors, New
100HP GE Fanuc Spindle Drive, All Ways Precision Re-Surfaced, New Gibs,
Rebuilt Ball Screws, Threading, Ram Head with 16 Station Automatic Tool
Changer,
56" 4-Jaw Hydraulic Chuck, Height Capacity Extended by 24", 2
Speed Transmission,
Power Rail Clamps, Automatic Lube System.
CATALOGUE SPECIFICATIONS:
Chuck
Diameter........................................ 56"
Maximum Swing......................................... 68"
Maximum Height Under Tool............................. 65"
Maximum Height Under the Rail......................... 68-1/2"
Vertical Travel of Cross Rail......................... 58-1/2"
Horizontal Travel of Ram Head......................... 41-1/2"
Feeds, Range (Infinitely Variable).................... .001-200 IPM
Rapid Traverse........................................ 400 IPM
Motor, Horsepower..................................... 100 HP
Table
Speed.................................................. 2 - 320 RPM
Electrics............................................. 460/3/60
Approximate Machine Dimensions........................ 185" x 177"
Approximate Machine Height (Rail Up, Ram Up)....... 223""
Approximate Machine Weight............................ 76,000 LBS
CONDITION: Reconditioned and Retrofit ! 1 Year Control Warranty.
