12" TSUDAKOMA HORIZ/VERT CNC ROTARY
TABLE WITH DRIVE

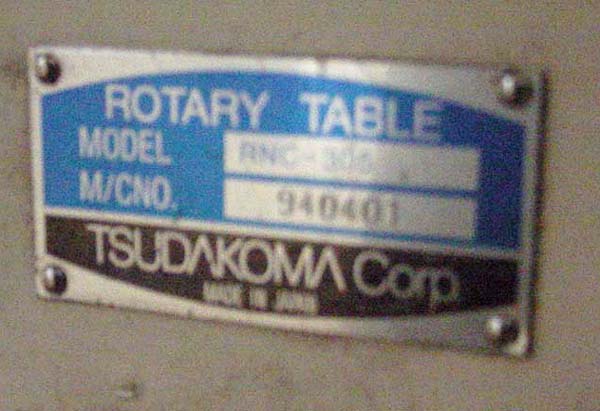

Model: RNC-305, New 1997, S/N 940401, Stock# K13229
TABLE DESCRIPTION:

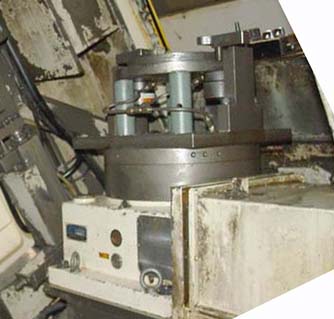

This Horizontal or Vertical Mount CNC Rotary Table was Designed
for
Full Contour Milling or Indexing of Parts. The Table is Driven by
an
Fanuc Electric Servo Motor with Resolver Feed Back which could be
Driven
by Most CNC Controls. This Table is also equipped with an Internal
Solenoid Actuated Hydraulic Table Clamp. For Work Holding It has a
12" Round T-Slotted Work Mounting Surface. Table Includes the
Fanuc Servo Motor and the Fanuc Servo Drive to Drive it. Fanuc
Part#
A06B-6079-H104.
CATALOGUE SPECIFICATIONS:
Working Surface Diameter...................................... 12"
Table Diameter................................................ 12"
Maximum Recommended Weight Cap (Horizontal)................... 800
LBS
Maximum Recommended Weight Cap (Vertical Without Tailstock)... 340
LBS
Distance Base to Center of Table (Vertical Mount)............. 10"
Distance Base to Top of Table (Horizontal Mount)..............
8-1/4"
Hole Thru Center of Table.....................................
1-1/4"
Table Positions...............................................
360,000
Approximate Dimensions........................................ 18
x 30"
Approximate Height............................................
8-1/4"
Approximate Weight............................................ 600
LBS
CONDITION: Appears to be in Excellent Condition !
