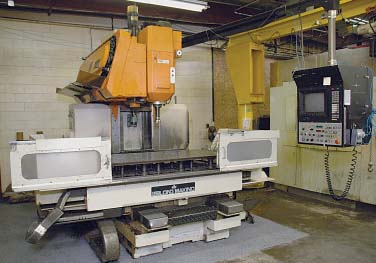

LEBLOND MAKINO CNC VERTICAL
MACHINING CENTER
Model FNC-128-30, New 1985, S/N LM3-010
Stock # K13232
EQUIPPED WITH:
Fanuc 10M CNC Pendant Control with Color
CRT, Multiple Part Program
Storage, Stored Program Management, RS-232 Port, Programmable Offsets,
Axis Error Compensation, 30 Station Automatic Tool Changer, Heavy Duty
Square Way Construction, Heavy Duty CAT 50 Geared Spindle, Metal Way
Covers, Chip Conveyor, Coolant System.
CATALOGUE SPECIFICATIONS:
Table Working Surface............................. 70" x 32"
Longitudinal Travel (X-Axis)...................... 49.2"
Cross Travel (Y-Axis)............................. 31.5"
Vertical Travel (Z-Axis).......................... 27.5"
Tool Storage Capacity............................. 30
Spindle Horsepower................................ 20 HP
Spindle Speeds Range.............................. 10-3500 RPM
Spindle Taper..................................... No. 50 CAT
Approximate Machine Dimensions.................... 185" x 145"
Approximate Machine Height........................ 119"
Approximate Machine Weight........................ 24,000 LBS
CONDITION: Machine Appears to be in Excellent Condition !
PRICE: F.O.B. Cincinnati Ohio........................ $ 24,500.
