Hwacheon CUTEX-160
CNC
Turning
Center
(w/Mill-Drill)
Model:
TMS-T1MC
CUTEX-160,
S/N M024352F3FG,
New 2004
Stk#
K13236
Machine Equipped
with:
Fanuc 0i-TB
Hydraulic Unit
Door Interlock
Standard worklight
45 degree slant bed
design
Complete coolant
system
Chip and coolant
splash guarding separate from bed casting

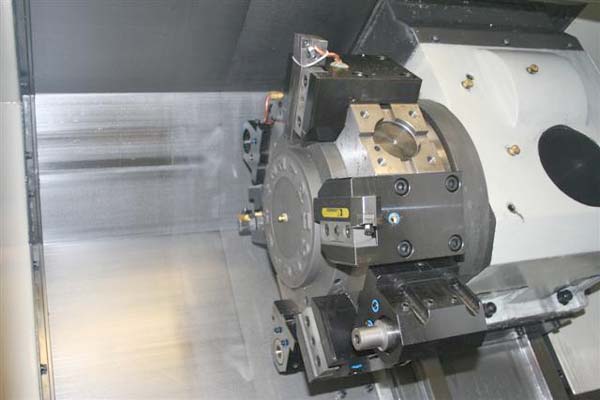

12 station turret
with servo index/Non lift curvic coupling
ID/OD/Mill drill
tooling in any position on turret
Foot switch for
hydraulic chuck
6?? diameter

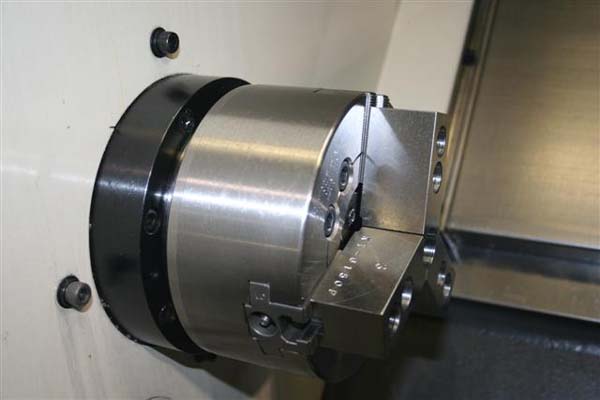

hydraulic thru-hole power chuck
Boring bar holders,
face holder, boring bar sleeves, drill sockets
Qty-1 Axial Rotary
Tool Holder
Catalog
Specifications ? TMS-T1MC CUTEX-160:
General Features
Chuck Size
6?
Maximum swing
21.6??
Maximum turning
diameter 11.8??
Maximum turning length
11.8??
Bar
diameter
1.7??
Spindle
Spindle
Nose
A2-5
Spindle
bore
2.2??
Spindle speed
30-6,000 RPM
Spindle horsepower (Cont/30
min) 10/15 (AC)
Type of turret:
Servo index motor/Non lift curvic coupling
Drum
Number of
stations
12
Index
time
0.15 seconds/station
Tool Size
Turning & facing
1?? x 1??
Boring bar maximum
diameter 1.25??
Rapid traverse rate of
X-axis 1,417 IPM
Rapid traverse rate of Z-axis
1,417 IPM
Feedrate
0.04-157 IPM
Axis travel
X-axis
6.7??
Z-axis
13.2??
Positioning accuracy of
X-axis 0.0002?/4?
Positioning accuracy of Z-axis
0.0003?/12?
Repeatability of
X-axis +
0.00007?
Repeatability of
Z-axis +
0.00001?
Mill Drill:
Number of
tools
12
Spindle
speeds
20-5000 rpm
Spindle horsepower
(Cont/30min) 3/5 HP
Minimum index
angle 0.001
degrees
Machine dimensions:
Floor space: (W x
L) 61? x
84?
Machine
height
67.7?
Total power required
(220V) 30KVA 60 Amps
Total
weight
7,150 Pounds
Excellent condition with only 1955 hours in-cycle. The machine was
originally purchased in late 2004, and only used for a light duty
machining contract. The machine is under power and available for
inspection in Brea, CA
