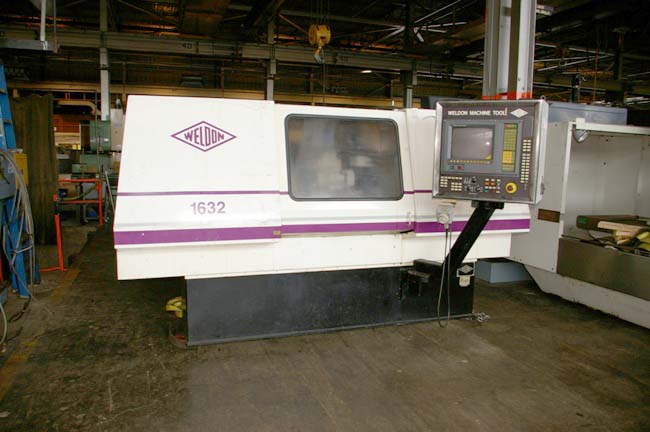

16" X 32" WELDON CNC PLAIN CYLINDRICAL GRINDER, MODEL APG 1632
  WITH SWING DOWN INTERNAL ATTACHMENT AND FULL C AXIS WORKHEAD
 S/N 761                                               NEW 1991

     MACHINE DESIGNED TO GRIND TAPERS, CHAMFERS, RADII, CONTOURS, FILLETS,
     SHOULDERS, AND STRAIGHT SURFACES IN ONE CONTINUOUS OPERATION ON THE
     SAME WORK PIECE.  IT IS DESIGNED TO GRIND MULTI-DIAMETER SHAFTS,
     REAMERS, PUNCHES, MANY TYPES OF CONTOURED ROLLS AND AN ENDLESS LIST OF
     SPECIAL PARTS.

     THIS MACHINE IS EQUIPPED WITH A FULL C-AXIS PROGRAMMABLE WORKHEAD.
     THIS OFFERS THE CAPABILITY TO GRIND NONCONCENTRIC PARTS SUCH AS CAMS,
     SHAPES, OR CAMSHAFTS.  THIS ALSO ALLOWS YOU TO GRIND FLATS ON SHAFTS
     SUCH AS SQUARE PUNCHES, OCTAGON SHAFTS, POLYGON SHAPED DIES, AND
     CUTTER RELIEF ANGLES.


  EQUIPPED WITH:

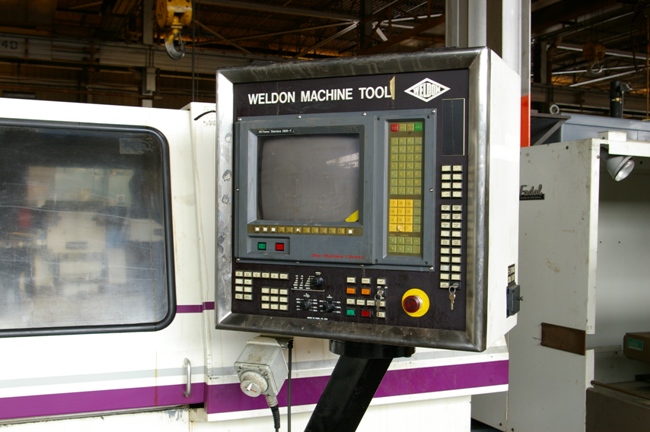

       GE FANUC 150-T CNC CONTROL
       WELDON E-Z GRIND SOFTWARE
       PROGRAMMABLE C-AXIS WORKHEAD FOR NON ROUND GRINDING
       POWER OPERATED SWING DOWN INTERNAL GRINDING ATTACHMENT
       VARIABLE SPEED GRINDING WHEEL
       AUTOMATIC LUBRICATION SYSTEM
       MANUAL PULSE GENERATOR
       HEIDENHAIN LINEAR SCALE FEEDBACK
       RS232 PORT
       CONTINENTAL HYDRAULIC POWER UNIT ( INTERNAL ATTACHMENT )
       ENCYLCON COOLANT FILTRATION SYSTEM
       SINGLE POINT WHEEL DRESSER ( MOUNTED ON WORKHEAD )
       FULL MACHINE ENCLOSURE
       HOFFMAN AIR CONDITIONER ( FOR ELECTRONIC CABINET )


CATALOG SPECIFICATIONS:

 SWING OVER TABLE, MAXIMUM ----------------- 16"
   DISTANCE BETWEEN CENTERS, MAXIMUM --------- 32"
   TABLE TRAVEL ----- ( X ) ------------------ 26"
   WHEELHEAD INFEED TRAVEL ------------------- 16"
   MAXIMUM WEIGHT OF WORK BETWEEN CENTERS ---- 1,200 LBS.
   MAXIMUM WEIGHT OF WORK CHUCKED ------------ 700 LBS.
   GRINDING WHEEL SIZE, MAXIMUM -------------- 14" X 2" X 5" HOLE
   WORKHEAD SPINDLE NOSE --------------------- A2-6"
   WORKHEAD THRU HOLE DIAMETER --------------- 1-1/16"
   WORKHEAD SPEEDS, INFINITE ----------------- 0 TO 600 RPM
   WORKHEAD CENTER TAPER --------------------- #5 M.T.
   WHEELHEAD SPEED --------------------------- VARIABLE
   WHEELHEAD FEED RATE, MAXIMUM -------------- 200 IPM
   TAILSTOCK CENTER -------------------------- #5 M.T.
   WHEELHEAD MOTOR DRIVE --------------------- 10 HP A.C.
   WORKHEAD MOTOR ---------------------------- A.C.
    APPROXIMATE MACHINE WEIGHT ---------------- 15,500 LBS
