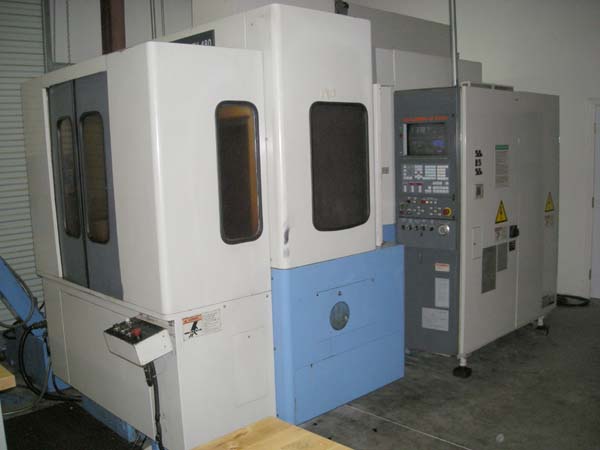

Mazak FH-480 2- Pallet CNC Horizontal
Machining Center
New 1997
Equipped With:

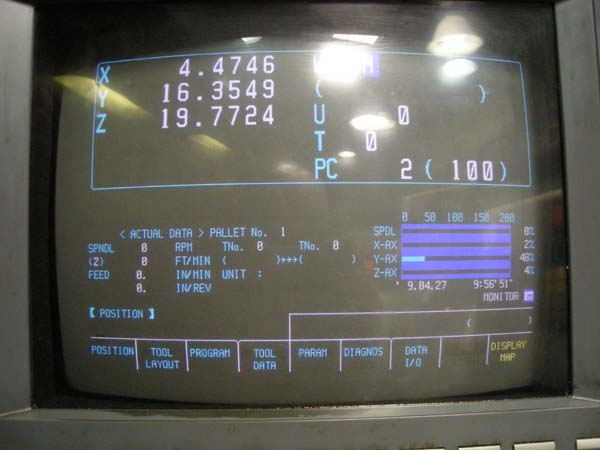

Mazatrol M plus CNC Control,
RS-232 Port
Eia option
Tool Life Monitoring
Auto Tool Length Measurement

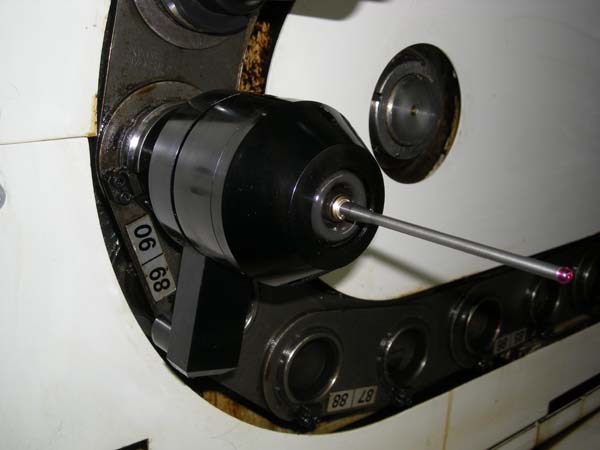

Renishaw Probe
Thru Spindle Coolant
Catalog Specifications:

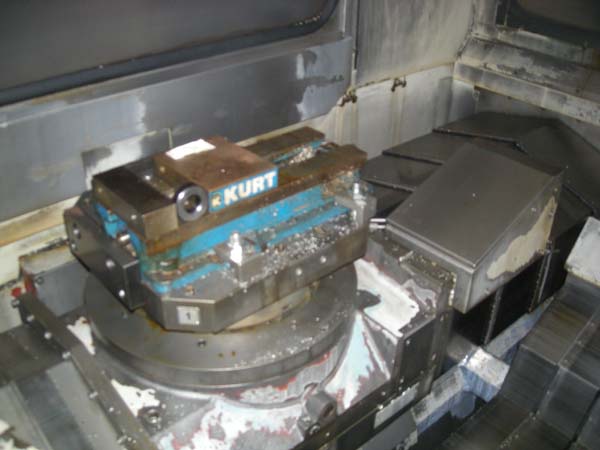

Pallets Sized (2)....................................................
15.75" x 15.75"
Pallet Load
Capacity.................................................. 880 lbs
Pallet
Indexing.......................................................... 1
Degree (360 Positions)
X Axis
Travel.............................................................
22.04"
Y Axis
Travel.............................................................
22.04"
Z Axis
Travel..............................................................
20.07"
Speed.......................................................................
12,000 RPM
Spindle
Taper............................................................. CAT
40
Rapid Traverse
Rate.................................................... ? IPM "fast"
Tool Magazine Capacity..............................................
90 ATC
Max. Tool Length / Weight...........................................
14.17? / 26.4 lbs
Tool Change Time (Tool to Tool) / (Chip to Chip)............. 1.3 s /
3.0 s
Spindle
Motor............................................................. 30
HP
Weight.......................................................................
20,723 lbs
