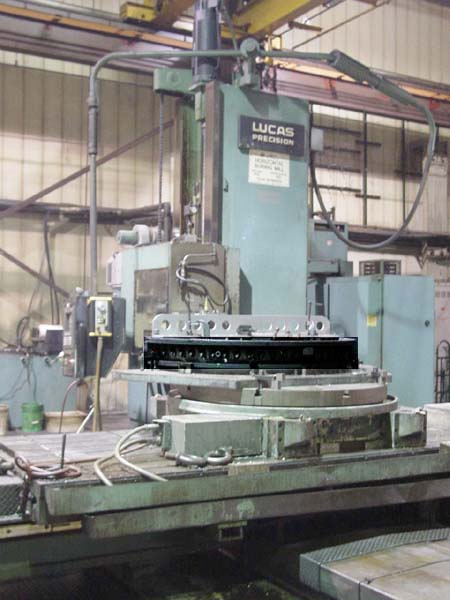

5" LUCAS `TABLE TYPE' CNC 4 Axis HORIZONTAL
BORING MILL
Model 30T117, New 1985 Retro 1992
Stock# K13245
EQUIPPED WITH:

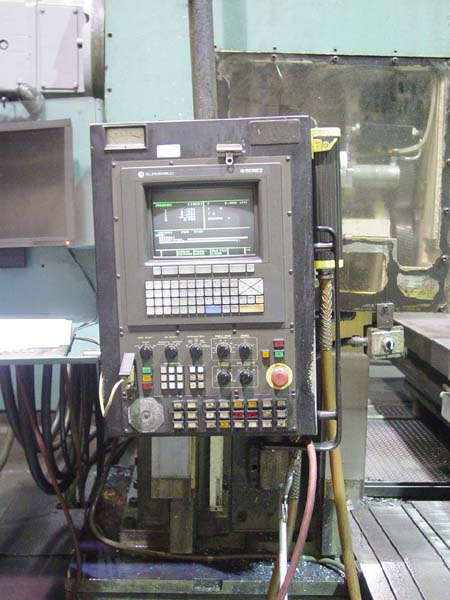

Allen Bradley Series 9 CNC Control with Full Edit, Hard Memory,
Color CRT. RS-232 Port, Updated Servos, Heavy Duty Hard Ways and
Ball-Screws, Electric Servo-Drives, Scales, Heavy Duty 4-Way Bed, Steal
Sliding Way Covers, and Coolant System.
CATALOGUE SPECIFICATIONS:
Spindle Diameter ........................................ 5"
Spindle Taper ........................................... #50
Table Cross Travel (X-Axis) ............................. 132"
Vertical Travel of Head (Y-Axis) ........................ 82"
Saddle Travel (W-Axis) .................................. 60"
Spindle (Quill) Travel (Z-Axis) ......................... 36"
Table Working Surface, W x L ............................ 60"x132"
Table Work Weight Capacity .............................. 30,000 LBS
Spindle Speeds .......................................... 9-1400 RPM
Feed Range (X,Y,Z,& W Axis) ............................. 0.005-200 IPM
Motor, Spindle Horsepower ............................... 30 HP
Electrics ............................................... 460/3/60
Approximate Machine Weight ............................... 66,000 lbs
CONDITION: This Machine Appears to be in Excellent Condition !
