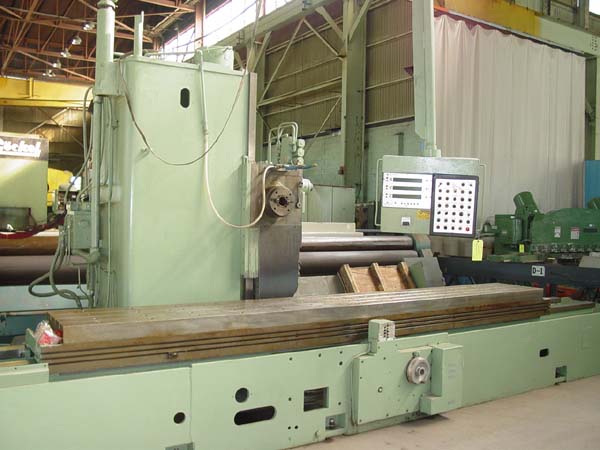

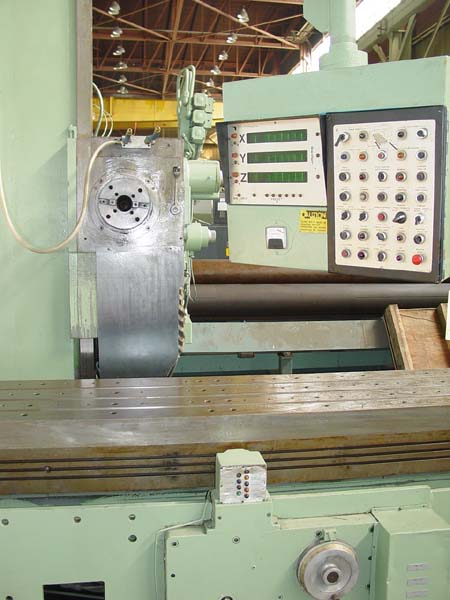

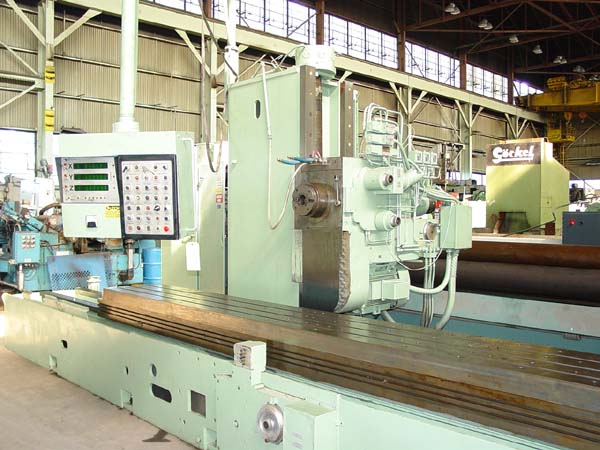

550-2610 CINCINNATI HORIZONTAL PRODUCTION MILL
Model 550-2610 HyPowermatic, New 1975, S/N 311453P75
Stock # K13247
Automatic Table Cycles, Electric Table
Control Dogs for Automatic Table

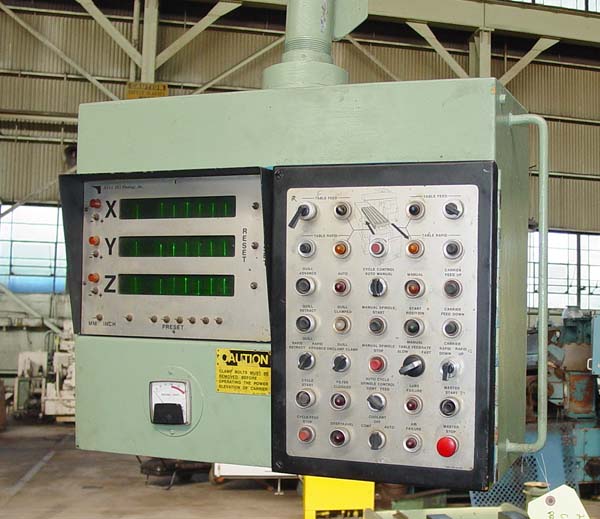

Cycles, Power Rapid Traverse, Extra High Machine, Flame Hardened Ways, Pendant Control w
DRO, Rise & Fall.
CATALOGUE SPECIFICATIONS:
Table Size............................................
26" x 144"
Table Working Surface................................. 26" x 144"
Longitudinal Table Travel (X-Axis).................... 120"
Vertical Travel of Spindle Carrier (Z-Axis)........... 60"
Quill Adjustment of Horizontal Spindle (Y-Axis)....... 6"
Max Vertical Height, Table to Spindle................. 60"
Min Vertical Height, Table to Spindle................. 0"
Feed Range Traverse (Infinite)........................ 1 to 150 IPM
Rapid Traverse........................................ 300 IPM
Horizontal Spindle Speeds (16)........................ 20-800 RPM
Horizontal Spindle Horsepower......................... 50 HP
Electrics............................................. 440/3/60
Approximate Machine Dimensions........................ 19'4" x 8'4"
Approximate Machine Height............................ 96"
Approximate Machine Weight............................ 24,000.
CONDITION: Appears to be in Very Good Condition!
