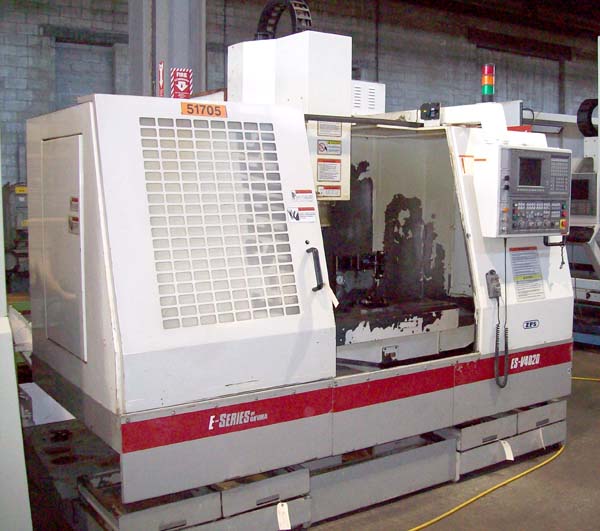

OKUMA ES V4020 CNC VERTICAL
MACHINING CENTER
Model ES-V4020, S/N 1097, New 2000
Stock# K13250
EQUIPPED WITH:
OSP U10M CNC Control, RS 232 Port, Inch Metric Programming,
Pendent MPG,
Graphics, Animation, Helical Interpolation, Synchronized Tapping,
Hi-G,
Hi-Cut, Graphic I-Map, Area Machining, Extra M-Functions, 20
Position
Automatic Tool Changer, Spindle Chiller Full Enclosure, Chip
Conveyor,
Coolant System.
CATALOGUE SPECIFICATIONS:
Table Working Surface............................. 47" x 20"
Table Load Capacity............................... 1,500 LBS
Longitudinal Travel (X-Axis)...................... 40"
Cross Travel (Y-Axis)............................. 20"
Vertical Travel (Z-Axis).......................... 20"
Rapid Traverse Rate (X and Y Axes)................ 941 IPM
Rapid Traverse Rate (Z Axis)...................... 941 IPM
Spindle Face to Table Surface..................... 7.8" - 28.6"
Tool Storage Capacity............................. 20
Spindle Speeds Range.............................. 50-8000 RPM
Spindle Taper..................................... CAT-40
Spindle .......................................... 15 HP
Approximate Machine Dimensions.................... 110" x 90"
Approximate Machine Height........................ 117"
Approximate Machine Weight........................ 8,800 LBS
CONDITION: Machine Appears to be in Excellent Condition!
