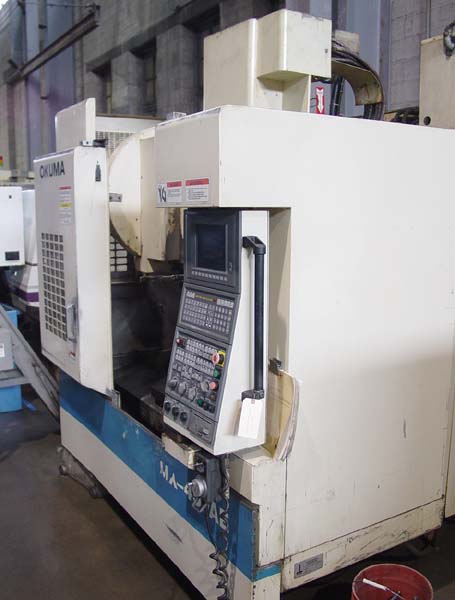

OKUMA MX-45VAE CNC VERTICAL MACHINING CENTER
                     New 1998, S/N 09074, Stock# K13251



EQUIPPED WITH:



OSP-700M CNC Control w/9" Flat Panel CRT, RS-232 Port for DNC Operation,
3-1/2" Floppy Disk Drive, Helical Interpolation, Rigid Tapping, Exact
Stop, 4th Axis Drive, Sub-Programs, Extra Math Functions, Thermal Comp,
Spindle Chiller, Cycle Time Reduction, 8,000 RPM Spindle, Fully
Enclosed, Coolant System and Chip Conveyor.



CATALOGUE SPECIFICATIONS:



Table Working Surface................................. 39.4" x 20.07"
Table Load Capacity................................... 1500 LBS
Longitudinal Travel (X-Axis).......................... 30"
Cross Travel (Y-Axis)................................. 18.1"
Vertical Travel (Z-Axis).............................. 17.7"
Rapid Traverse Rate (X & Y-Axis)...................... 1,181 IPM
Rapid Traverse Rate (Z-Axis).......................... 944.9 IPM
Tool Storage Capacity................................. 20
Spindle Horsepower.................................... 10 HP
Spindle Speed Range................................... 75-8000 RPM
Spindle Taper......................................... #40 CAT
Electrics............................................. 460/3/60
Approximate Machine Dimensions........................ 72" x 94"
Approximate Machine Height............................ 104"
Approximate Machine Weight............................ 13,000 LBS



CONDITION: Machine appears to be in Very Good Condition !
