CINCINNATI SABRE-2000 CNC VERTICAL MACHINING
CENTER
S/N 7044A00-96-0043, New 1996, Stock# K13259
EQUIPPED
WITH:

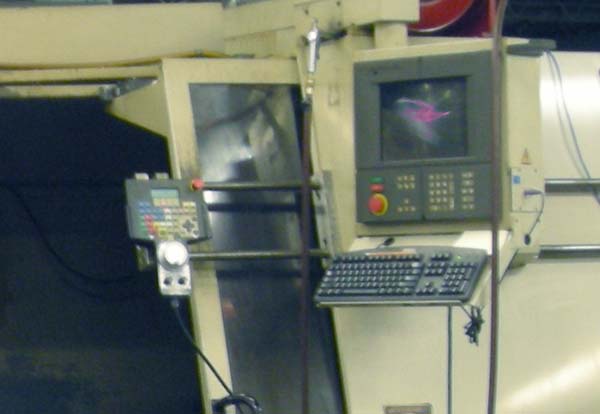

Cincinnati Acramatic 2100 PC-Based CNC
Control w/Color CRT, Hand-Held
Pendent Control, Rigid/Solid Tapping, Background Edit, Multi Part
program Storage, Enhanced Tool Data, Programable Offsets,Continuous
Load, Thru the Spindle Coolant, RS-232 Data Line, Full Coolant
Enclosure, Chip Conveyor, and Coolant System.
CATALOGUE SPECIFICATIONS:
Table Working
Surface................................. 84" x 30"
Table Load Capacity................................... 3700 LBS
Longitudinal Travel (X-Axis).......................... 80"
Cross Travel (Y-Axis)................................. 30"
Vertical Travel (Z-Axis).............................. 32"
Feed Rates (X,Y,Z Axis)............................... .1 - 590 IPM
Rapid Traverse Rate (X & Y-Axis)...................... 944 IPM
Rapid Traverse Rate (Z-Axis).......................... 745 IPM
Tool Storage Capacity................................. 21
Spindle Horsepower.................................... 15 HP
Spindle Speed Range................................... 30-5000 RPM
Spindle Taper......................................... #40
Electrics............................................. 460/3/60
Approximate Machine Dimensions........................ 213" x 116"
Approximate Machine Height............................ 129"
Approximate Machine Weight............................ 20,700 LBS
CONDITION: Machine appears to be in Very
Good Condition !
