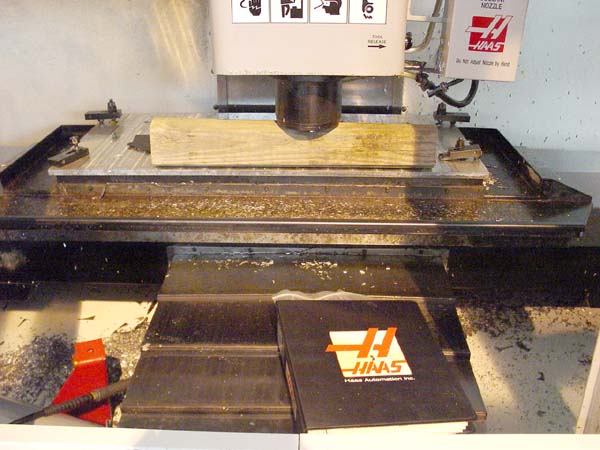

HAAS VF-2D HIGH SPEED CNC VERTICAL
MACHINING CENTER
New 2003, Serial No 32927, Model VF2D
EQUIPPED WITH:
Haas 3-Axis CNC Control w/1MB Extended
Memory (Pendant Control) Wired For 4th Axis
20-Position Automatic Tool Changer
Direct Drive
Auger Type Chip Conveyor
Programmable Coolant System
CATALOGUE SPECIFICATIONS:
Table Dimensions (Overall), W x L....... 14" x 36"
Table Load Capacity..................... 1500 LBS
Table Longitudinal Travel (X-Axis)...... 30"
Saddle Cross Travel (Y-Axis)............ 16"
Quill Vertical Travel (Z-Axis).......... 20"
Spindle Nose to Table, Maximum.......... 24"
Spindle Nose to Table, Minimum.......... 4"
Spindle Taper........................... #40
Spindle Speeds, Range................... 0 to 12000 RPM
Cutting Feedrate, Maximum............... 833 IPM
Rapid Traverse Rates, X, Y, & Z-Axis'... 1400 IPM
Spindle Motor, Horsepower Rating........ 20/15 HP
Weight, Approximately................... 8000 LBS
NOTE: Machine Appears To Be In Very Good Condition
With A Base Replacement Of $62,995.00.
PRICE: F.O.B. CINCINNATI, OHIO............. $29,500.00
