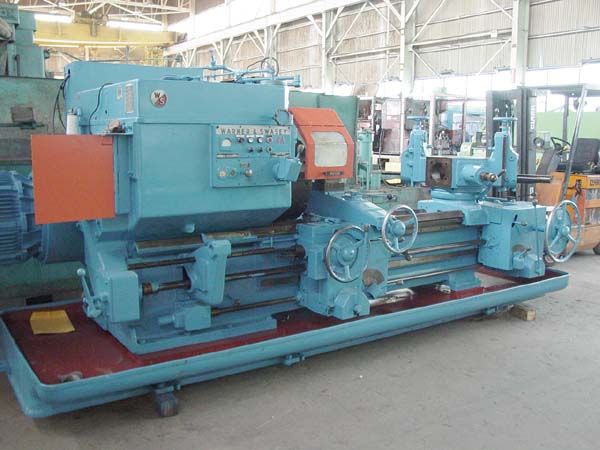

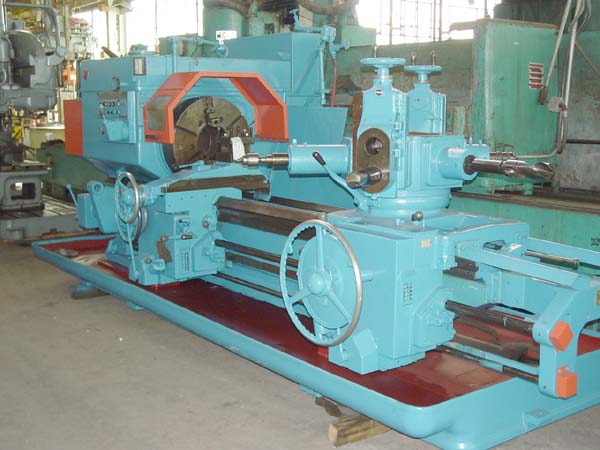

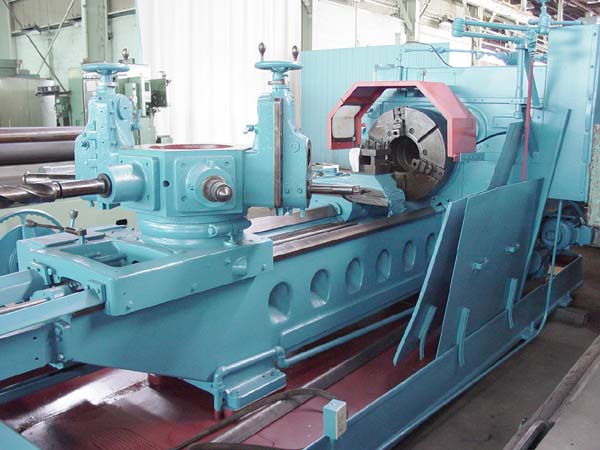

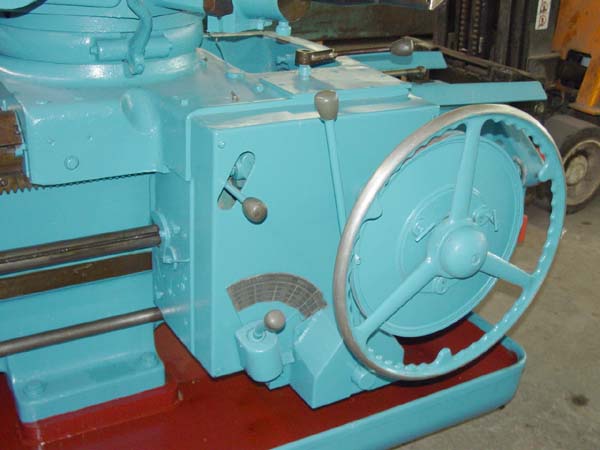

4A WARNER & SWASEY "SQUARE-HEAD" SADDLE-TYPE
  TURRET LATHE W/9.25" HOLE & POWER CHUCK

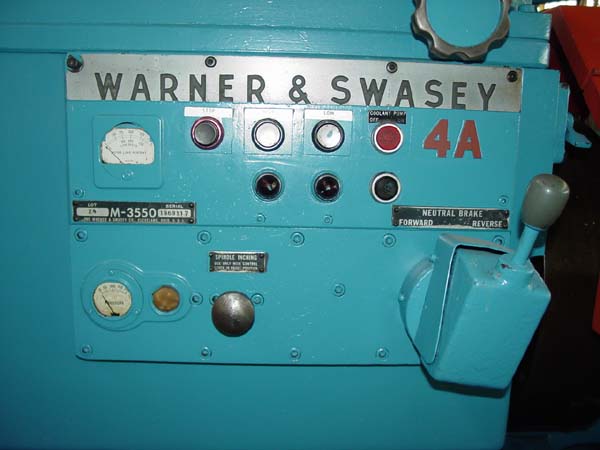

New 1962, Serial No 1868117, Model 4A, Series M3550


EQUIPPED WITH:
9.25" Hole Thru Spindle - "Square-Head" Machine Design

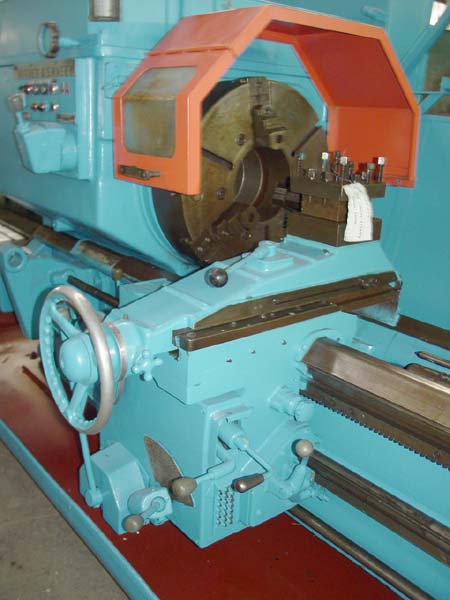

24" 3-Jaw Chuck, Power Rapids, Thread Chasing Attachment - 4-Way Tool Post                              - Hard  Ways (3) Flanged Tool Holders - (2) Sliding Tool Holders

CATALOGUE SPECIFICATIONS:
Hole Thru Spindle...................... 9.25"
Bar Capacity, Round.................... 9"
Bar Capacity, Square................... 6.37"
Bar Capacity, Hexagon.................. 7.75"
Swing Over Bed Ways.................... 29.5"
Swing Over Carriage Guard.............. 28.25"
Swing Over Carriage Horn............... 22.44"
Turning Length, Maximum................ 59.625"
Carriage Longitudinal Travel (Z-Axis).. 67.57"
Cross-Slide Cross Travel (X-Axis)...... 17"
Turret Longitudinal Travel (Z-Axis).... 67.57"
Spindle-Face to Turret, Maximum........ 80"

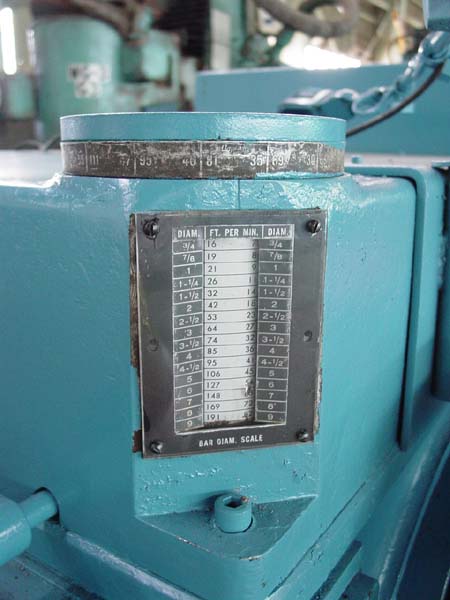

(16) Spindle Speeds, Range............. 15 to 395 RPM
(16) Carriage Long Feeds (Z-Axis)...... .005 to .167 IPM
(16) Carriage Cross Feeds (X-Axis)..... .003 to .103 IPM
(16) Turret Longitudinal Feed (Z-Axis). .005 to .167 IPM

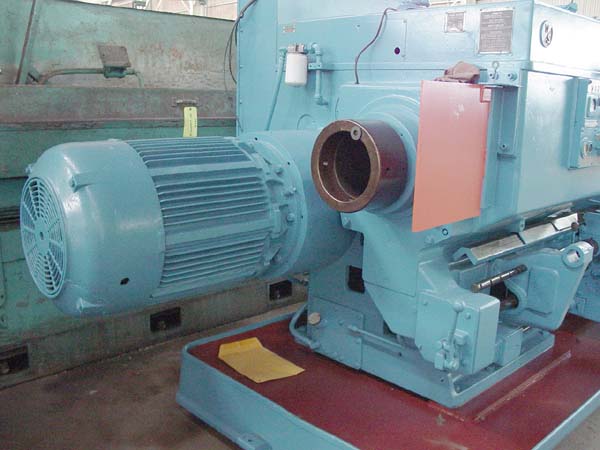

Main Motor, Horsepower................. 60 HP
Floor Space Required, L x D............ 17'10" x 7'9"
Weight, Approximately.................. 22000 LBS
