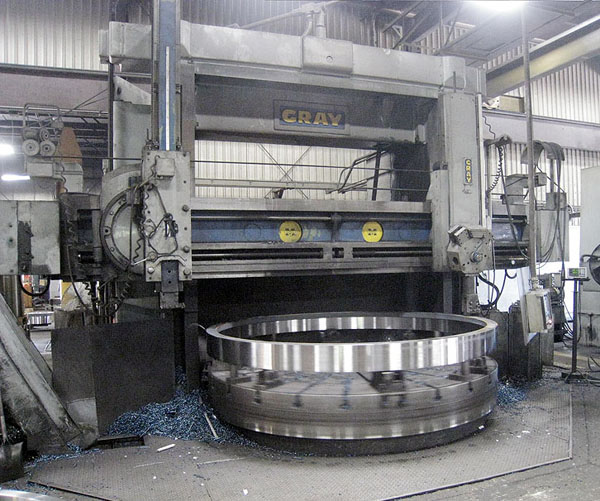

120" GRAY SERIES 60 VERTICAL BORING
MILL
New 1972 Stock # K54321
Equipped With:

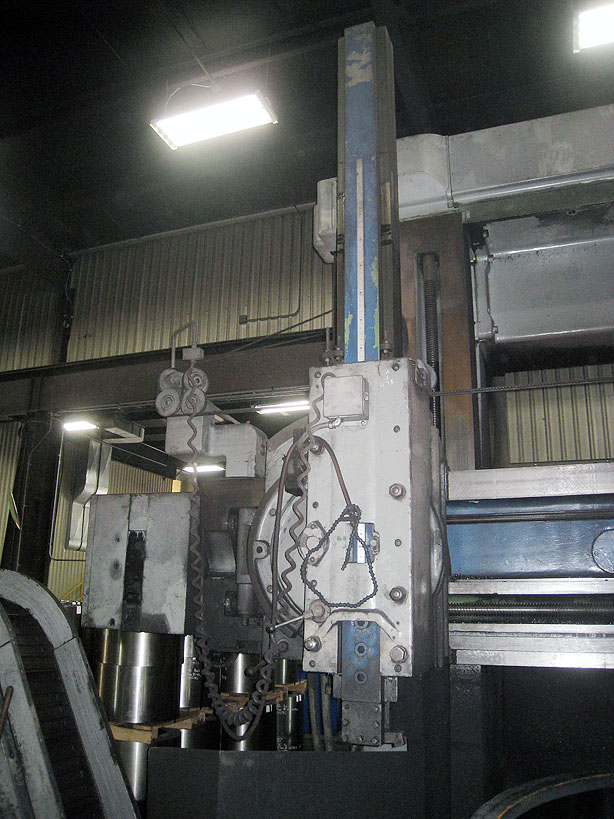

Left hand ram head

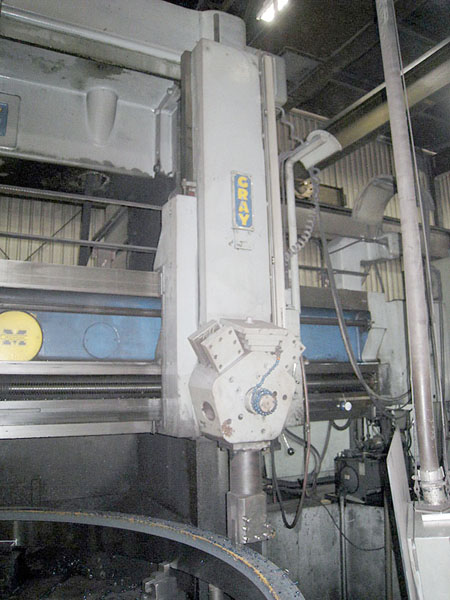

Right hand turret head
120" Face plate type chuck

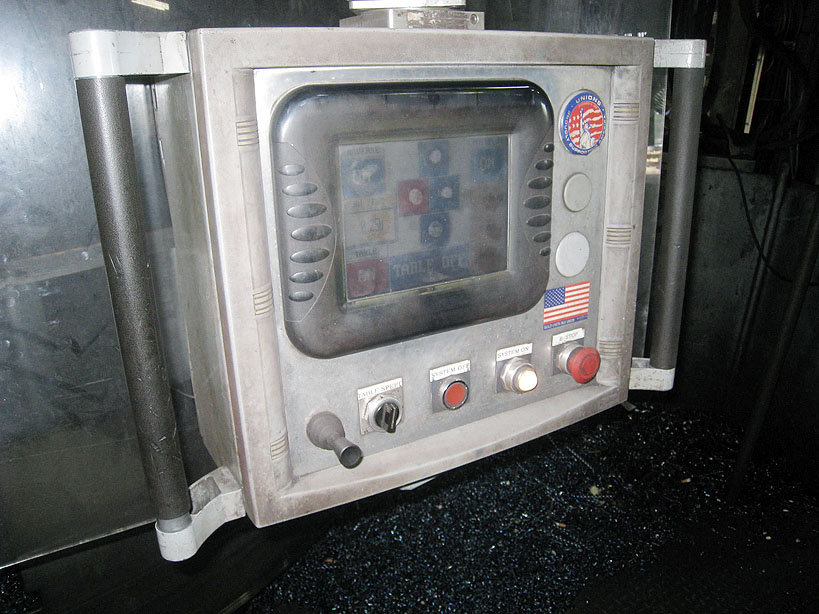

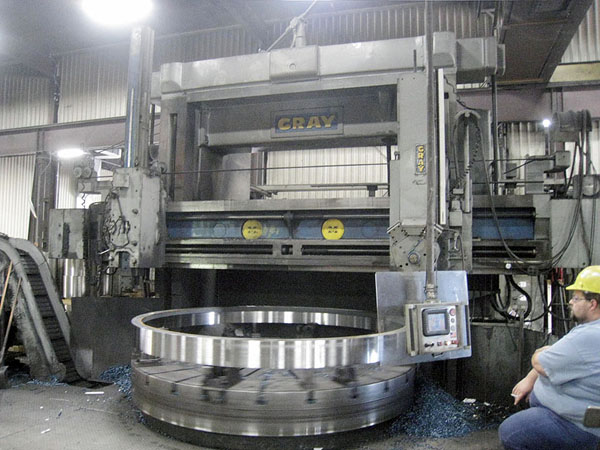

Pendant controls with easy touch screen operation
Fagor DRO on turret head
Taper turning attachment on left hand ram head
|
|
General Specifications:
Table diameter 120"
Height under saddle 102"
Height under ram face 114"
Height under turret face 113"
Vertical travel (below saddle) of ram heads 72"
Vertical travel (below saddle) of turret head 33"
Vertical travel (below saddle) of side head 96 1/4"
Horizontal travel of ram heads 69"
Horizontal travel of turret head 70 1/2"
Horizontal travel of side head ram 36"
Travel past center - ram heads 1/2"
Travel past center - turret heads 1/2"
Travel of rail 90"
Swivel of ram either side of vertical 45 Deg.
Size of bore in ram heads 4 1/2"
Size of bore in turret heads 3 1/2"
Maximum swing, with side head 128"
Maximum swing, without side head 128"
Feeds per rev. of table .003" to .500"
Table speed range rpm 1.6 to 50
Table top to floor 46 1/4"
Overall height machine top to floor 18'3"
Overall height pendant top to floor 25'8"
Overall height top of ram to floor 25'1 1/4"
Approx. floor space parallel to rail 24'
Approx. floor space at right angle to rail 20'
|
