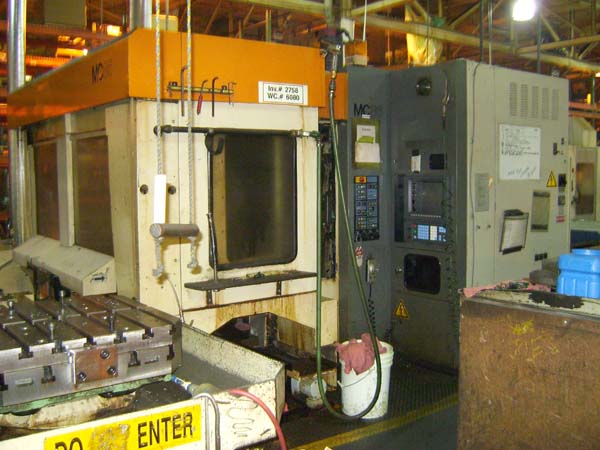

LEBLOND MAKINO
MC86 CNC HORIZONTAL MACHINING CENTER WITH 12 PALLET POOL
New 1992
EQUIPPED WITH:
Fanuc 15M CNC Control w/ 14" Color CRT, Twelve 24.8" x 24.8" Pallets, 1
Degree Pallet Indexing, 99 Position Automatic Tool Changer, Expanded Part
Program Storage, Canned Cycles, RS-232 Port, CAT 50 Spindle Taper, Coolant
Thru Spindle, Shower Coolant System, Motor Driven Oil Skimmer.
SPECIFICATIONS:
Longitudinal
Travel (X-Axis) .....................31.9"
Vertical Travel
(Y-Axis) .........................25"
Spindle Travel
(Z-Axis) ..........................25"

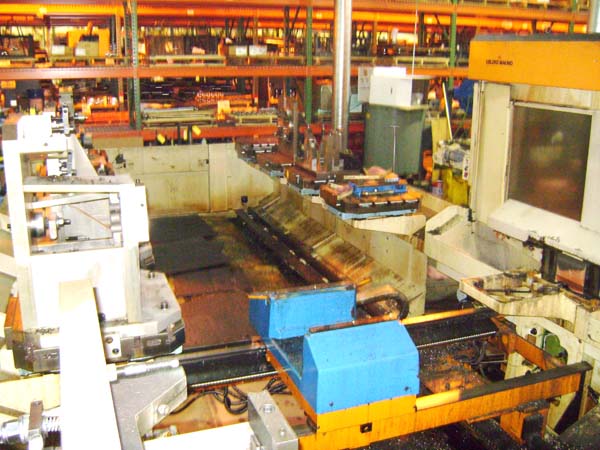

Pallet
Dimensions ................................24.8"x 24.8"
Maximum Pallet
Load ..............................3000 LBS
Number of
Pallets ................................12
Number of Index
Positions.........................360
Feed Rate, All
Axes ..............................945 IPM
Rapid Traverse,
All Axes ....................... .04-472 IPM
Spindle Speed
Range...............................10 to 4000 RPM
Spindle Taper
....................................#50 CAT

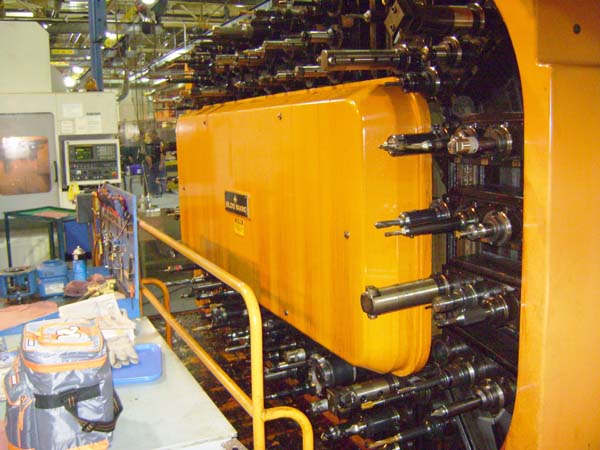

Number of Tool
Stations ..........................99
Approximate
Floorspace Dimensions
(Without Palllet
Pool)............................210" x 301"
Approximate
Machine Height .......................134"
Approximate
Machine Weight .......................37,000 LBS
