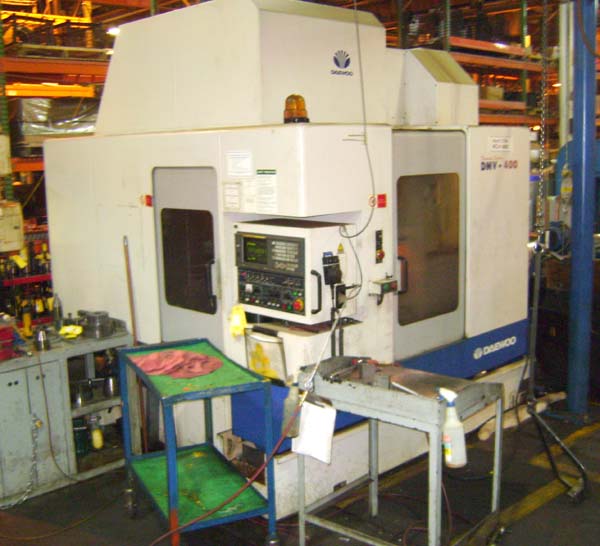

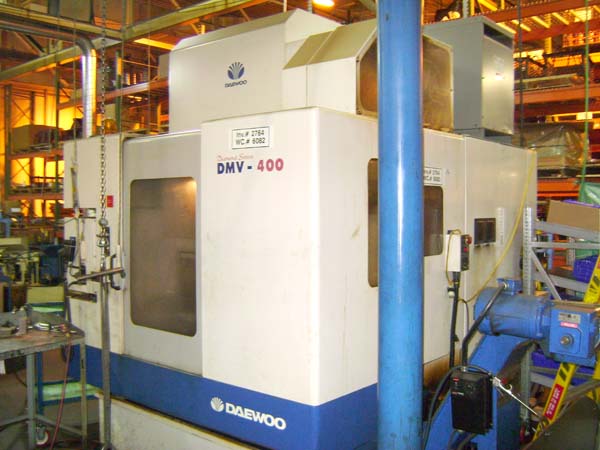

DAEWOO DVM-400 CNC VERTICAL MACHINING CENTER
New 1999
EQUIPPED WITH:
Fanuc 18M CNC w/ CRT, Remote Handwheel, 43" x 25.5" (2)
Position
Rotating Pallet, 30 Station Automatic Tool Changer,
Thru the Spindle Coolant, Cooljet Oil Filtration System, Kaukan Spindle
Oil Cooler, Full Coolant Enclosure. Turbo Chip Conveyor.
SPECIFICATIONS:
Mounting Surface..................................43" x
25.5"
Workpiece Change Setup............................0/180
Deg.
Table Load Capacity.............................. 660
LBS
Table Top to Spindle Nose Minimum................ 5.9"
Table Top to Spindle Nose Maximum................ 28.3"
Longitudinal Travel (X-Axis)..................... 22"
Cross Travel (Y-Axis)............................ 15.7"
Vertical Travel (Z-Axis)......................... 22.4"
Rapid Traverse Rate All Axes..................... 1181
IPM
Tool Storage Capacity............................ 30
Spindle
Speed
Range...............................20
- 10000 RPM
Spindle Taper.....................................CAT
40
Approximate Machine Dimensions................... 124"
x 110"
Approximate Machine Height....................... 116"
Approximate Machine Weight.......................
14,000 LBS
