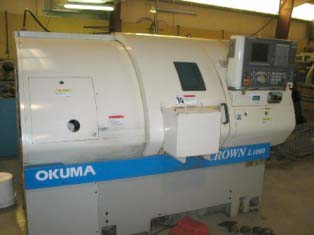

OKUMA CROWN CNC
TURNING CENTER
Model
L1060, New 2000, Stock# K13286
EQUIPPED WITH:

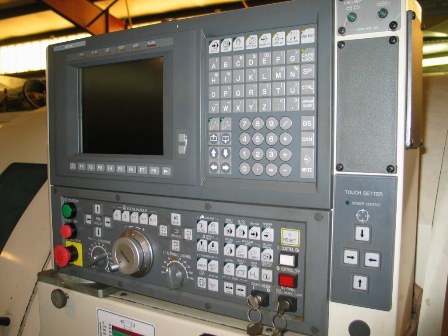

OSP-U10L CNC Control
Tool Setter

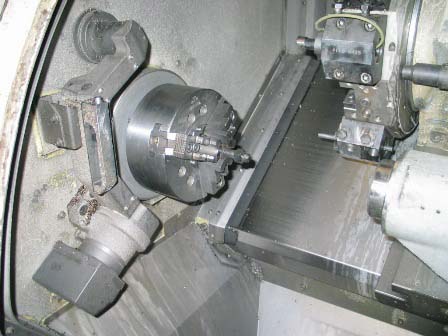

8" Chuck
Chip Conveyor
Parts Catcher
SPECIFICATIONS:
Max Swing Over Bed...................................... 21.65"
Maximum Swing over Cross-Slide.......................... 15.75"
Maximum Turning Diameter................................ 10.63"
Maximum Turning Length.................................. 19.68"
Standard Chuck Size..................................... 8" (3-Jaw)
Cross Travel (X-Axis)................................... 7.28"
Longitudinal Travel (Z-Axis)............................ 20.47"
Feed Range (Infinitely Variable)........................ .1-400 IPM
Rapid Traverse Rate (X-Axis)............................ 590 IPM
Rapid Traverse Rate (Y-Axis)............................ 787 IPM

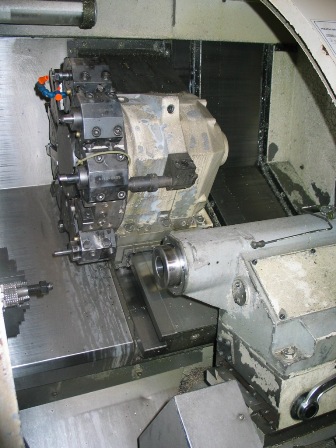

Number of Turrets....................................... 1
Turret Type............................................. NC Control
Tool Positions.......................................... 12 Total
Spindle Bore............................................ 2.20"
Spindle Nose............................................ A2-6
Spindle Speed Range (1 RPM Increments).................. 75-4200 RPM
Spindle Horsepower...................................... 18 HP
Electrics............................................... 208/3/60
Machine Dimensions:
Approximate Machine Dimensions.......................... 104" x 73" x
70"
Approximate Machine Weight.............................. 9,670 Lbs.
Conveyor Dimensions..................................... 24" x 120"
Conveyor Weight......................................... 400 Lbs.
Tank Dimensions......................................... 36" x 60"
Tank Weight............................................. 200 Lbs.
