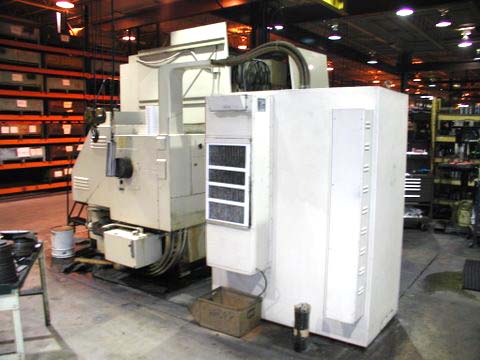

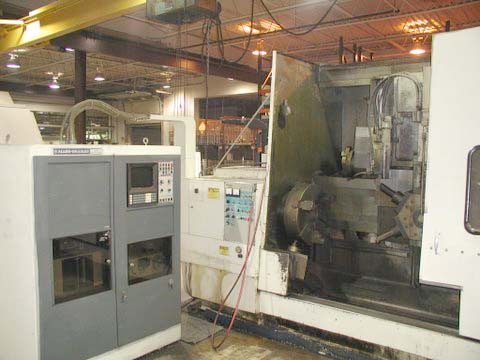

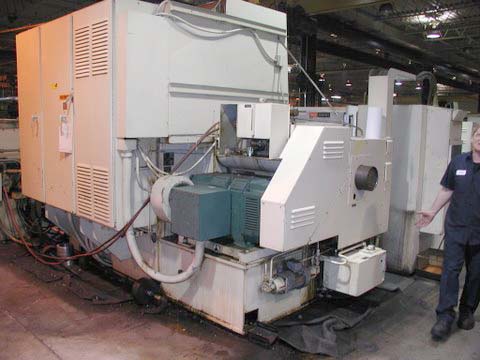

MONARCH TC-4 `HEAVY DUTY' UNIVERSAL CNC TURNING CENTER
Model TC-4, S/N
52518, New 1980
Stock # K13306
EQUIPPED WITH:

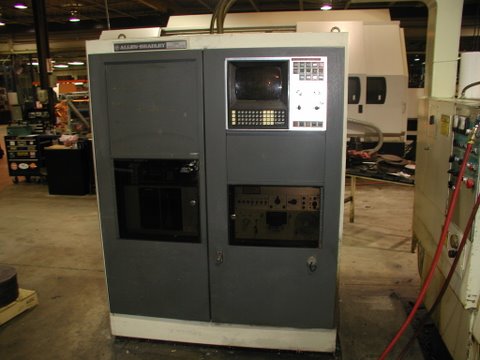

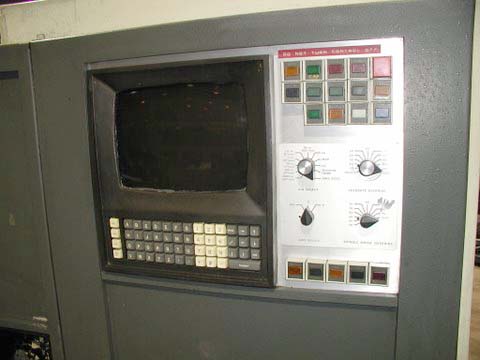

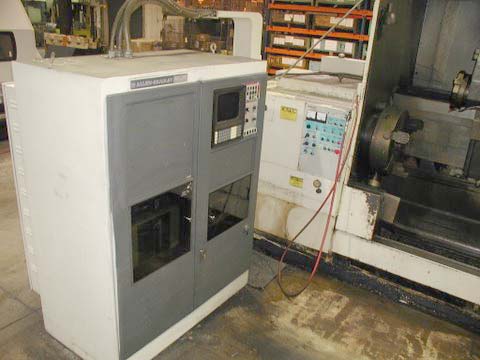

ALLEN BRADLEY 7360 CNC Control, Inch/Metric Programmable, Manual Pulse
Generator, 75 HP Spindle Option, Backlash Compensation, Hardened & Ground
Box Ways,

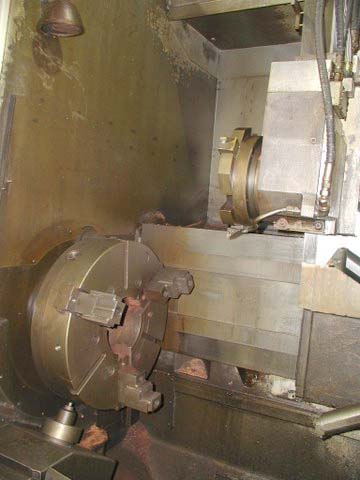

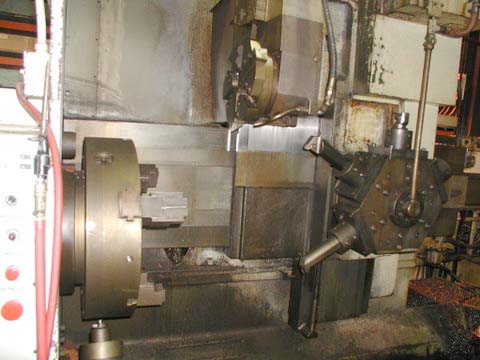

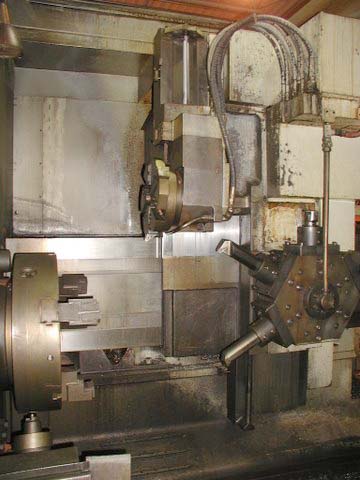

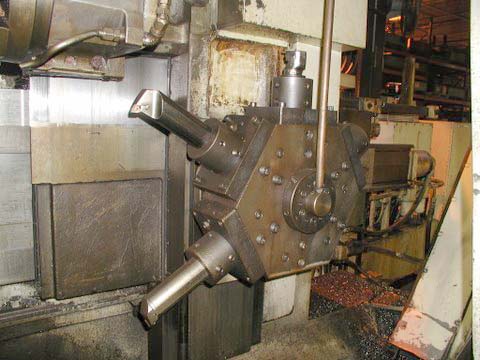

24" 3-Jaw Power Chuck, (2) Turrets 1 ID and 1 OD Mounted on a Common
Cross Slide
Giving you 12 Tool Positions Total, Chip Conveyor, Coolant System, Large
Tooling
Package.
CATALOGUE SPECIFICATIONS:
Max Swing Over the Bed ........................... 32"
Chuck Size......................................................24"
Cross Travel (X-Axis) .................................. 26"
Longitudinal Travel (Z-Axis) ........................... 42"
Tool Positions (6 ID Turret & 6 OD Turret).............. 12 Total
Spindle Nose ........................................... A1-15
Spindle Bore ........................................... 7-7/16"
Feed Range (Infinitely Variable) ....................... 0-210 IPM
Rapid Traverse Rate .................................... 275 IPM
Spindle Speed Range .................................... 28-1270 RPM
Spindle Drive Motor .................................... 75 HP
Electrics .............................................. 460/3/60
Approximate Machine Dimension........................... 200" x 123"
Approximate Machine Height.............................. 114"
Approximate Machine Weight.............................. 35,000 LBS
Condition: Machine Appears to be in Very Good Condition !!
PRICE: F.O.B Mid-Western Location.................... $ 14,500.
