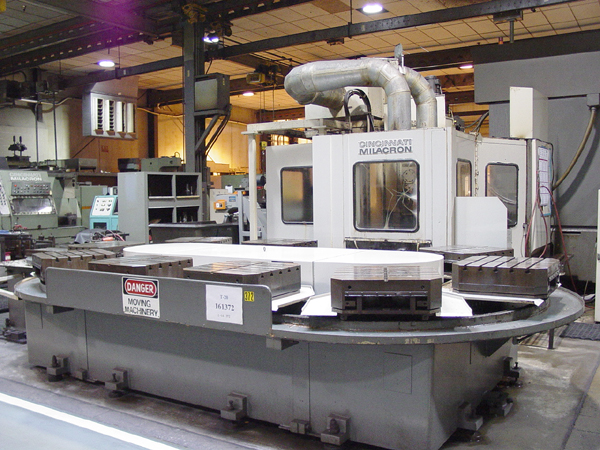

CINCINNATI MILACRON T-20 (10) PALLET CNC
HORIZONTAL MACHINING CENTER
New 1981, S/N 3122A01-81-0003, Stock# K13330
EQUIPPED WITH:

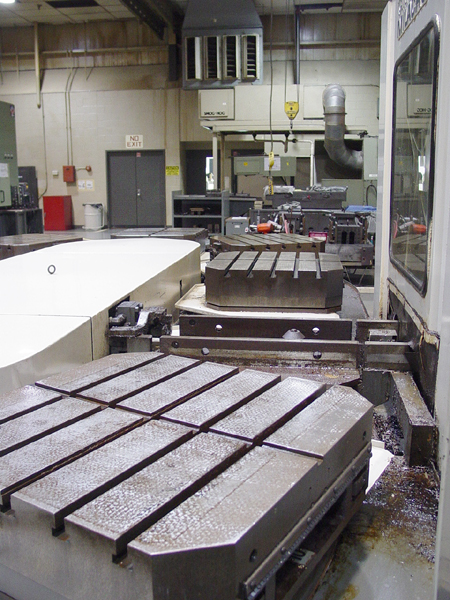

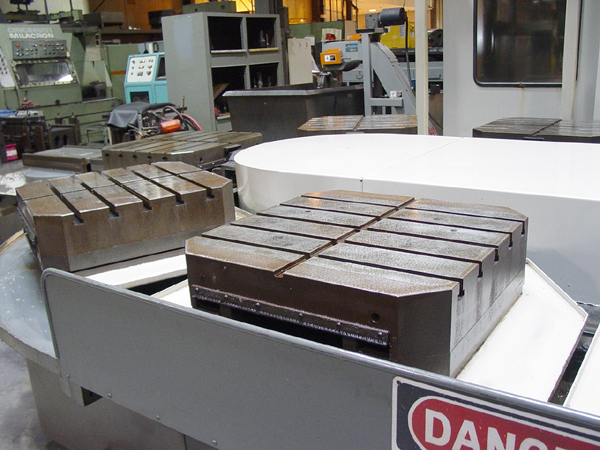

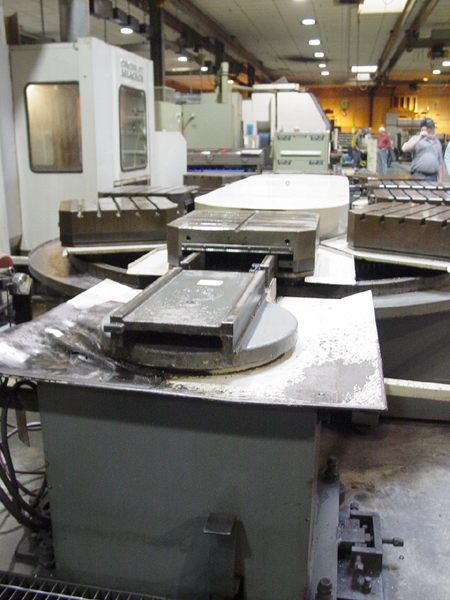

Acramatic 900 CNC Control w/CRT, Ten 24.8" 1 Degree Indexing Pallets, 90
Position Automatic Tool Changer, 8000' Additional Part Program Storage,

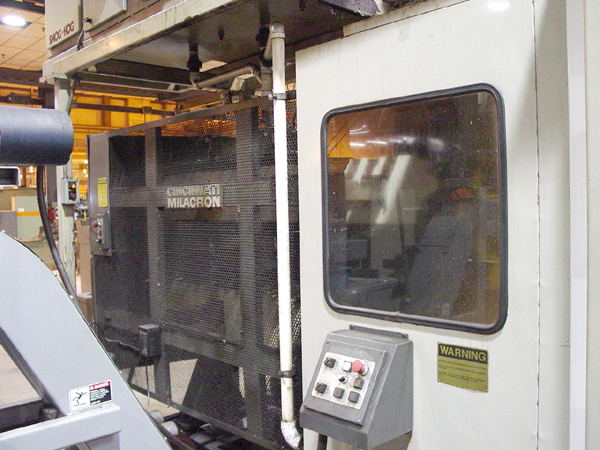

Spindle Probe, CAT 50 Spindle Taper, Full Coolant Enclosure,
Thru-the-Spindle Coolant, Chip Conveyor and Coolant System.
CATALOGUE SPECIFICATIONS:
Longitudinal Travel (X-Axis) ........................... 32"
Vertical Travel (Y-Axis) ............................... 32"
Spindle Travel (Z-Axis) ................................ 32"
Pallet Dimensions ...................................... 24.8"x24.8"
Maximum Pallet Load .................................... 3000 LBS
Number of Pallets ...................................... 10
Number of Index Positions............................... 360
Feed Rate, All Axes .................................... .1-720 IPM
Rapid Traverse, All Axes ............................... 720 IPM
Spindle Horsepower...................................... 20 HP
Spindle Speed Range..................................... 20-6000 RPM
Spindle Taper .......................................... #50 CAT
Number of Tool Stations ................................ 90
Electrics .............................................. 460/3/60
Approximate Floorspace Dimensions ...................... 210" x 301"
Approximate Machine Height ............................. 134"
Approximate Machine Weight ............................. 38,000 LBS
CONDITION: Appears to be in Excellent
Condition! Under Power in
original Builder's Plant.
PRICE: On-Location Cincinnati, Ohio
......................... $ 17,500.
