MANDELLI 5 Axis  CNC HORIZONTAL  MACHINING CENTER
 MODEL: H 1502 30/40,  YEAR: 1983, RETROFITTED: 1993
 Stock# K13332

EQUIPPED WITH:

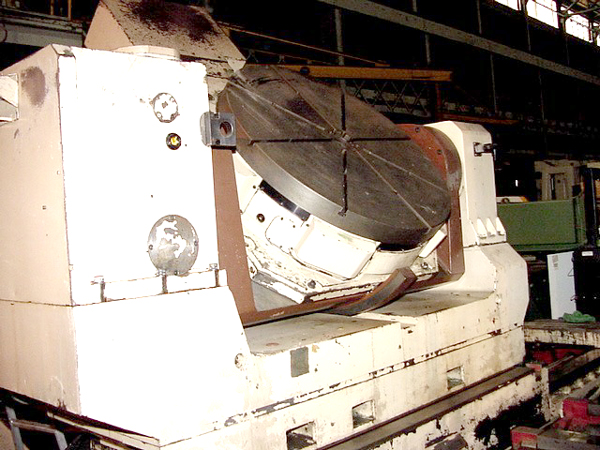

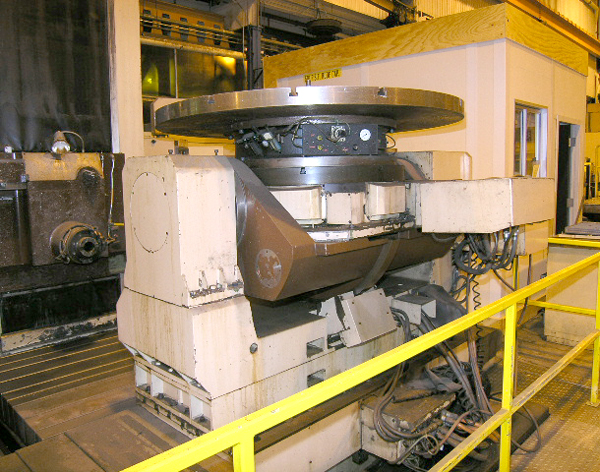

 - AUXILIARY 43" DIAMETER ROTARY TABLE w/ 6,000 lbs LOAD CAPACITY
  A ROTARY CONTOURING AXIS
  B TILTING CONTOURING AXIS

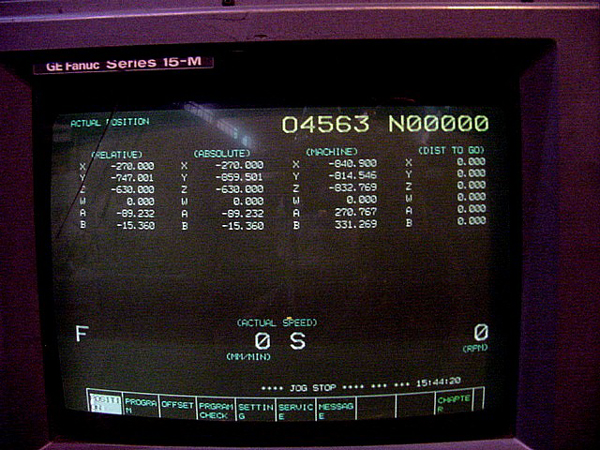

 - GE FANUC 15M 5 AXIS CONTROL W/ FERRAND SCALES
 - ALL AXES EQUIPPED WITH FANUC AC (RED CAP) SERVOS

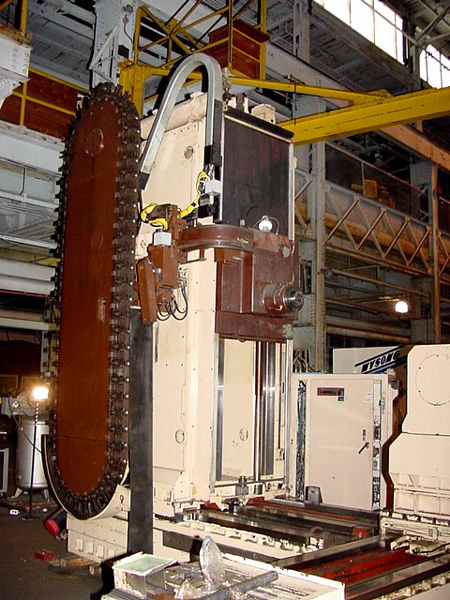

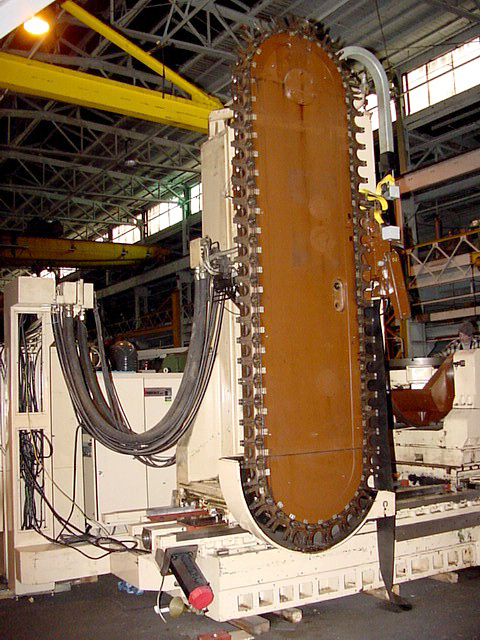

 - 60 POSITION AUTOMATIC TOOL CHANGER
 - RIGID TAPPING

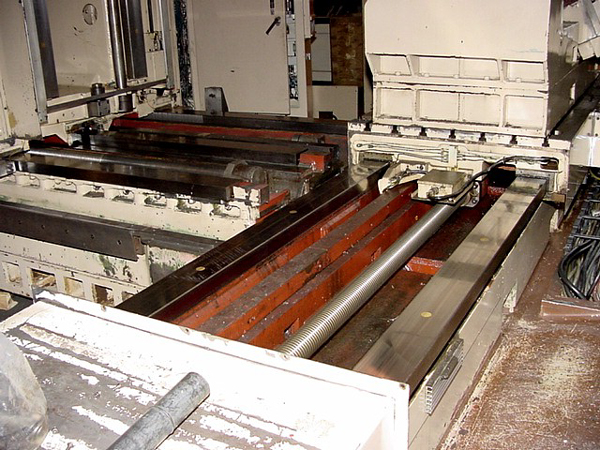

 - BOX WAY CONSTRUCTION
 - TOOLING AND PART PROBING
 - FLOOD COOLANT, CHIP CONVEYOR, WAY COVERS
 - MAIN SPINDLE DRIVE FANUC 30/35 HORSE POWER


 SPECIFICATIONS:
 WORKING SURFACE OF TABLE ........ 39" X 80"
 CROSS TABLE TRAVEL (X) .......... 78"
 VERTICAL HEADSTOCK TRAVEL (Y) ... 79"
 COLUMN TRAVEL (W) ............... 64"
 SPINDLE SPEED RANGE ............. 0-3000 RPM
 SPINDLE TAPER ................... #50 TAPER
 MAGAZINE CAPACITY ............... 60 TOOL
