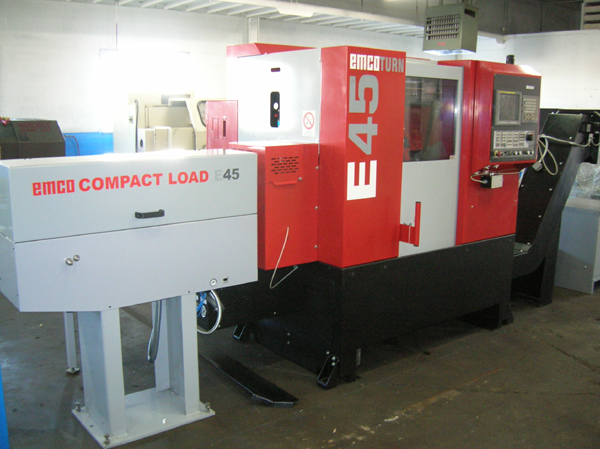

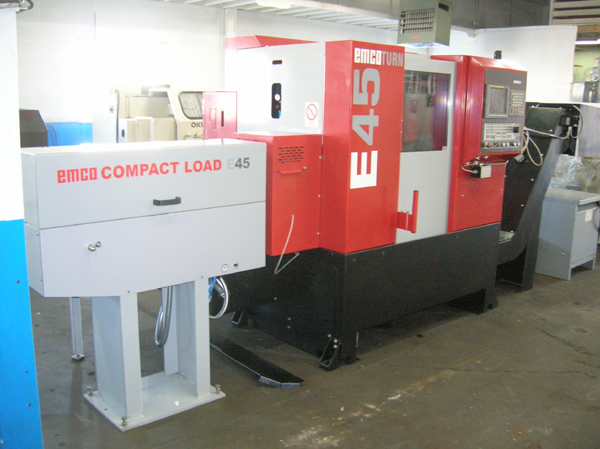

Emco Maier Model Emco Turn E45
CNC
Turning
Center
s/n:
R2EU4151 New: 2006
Equipped With:
Fanuc 0i-TC
CNC Control
Miscellaneous Live Tool Holders
Miscellaneous Standard Tool Holders
Emco Compact Bar Loader
Chip Conveyor
Auto. Door
Parts Catcher
Tail Stock
C-Axis on Spindle
Set of Manuals
3-Jaw Chuck and Master Collet Nose
Specifications:
Swing Over
Bed
16.9”
Swing Over Cross
Slide 8.3”
Maximum
Center
Distance 23.6”
Max. Turning
Diameter 8.7”
Max. Part
Length 20.1”
Max. Bar Stock
Diameter 1.77”
X Axis
Travel
6.3”
Y Axis
Travel
12.2”
Spindle
Speeds
0-6,300
RPM
Spindle
Nose
A2-5
C-Axis
.001 Degree
Number Driven
Tools 6
Number Total
Tools 12
Main Spindle
Motor 17.4 HP
Rapid Traverse, X Axis
787 IPM
Rapid Traverse, Z
Axis 944 IPM
