KITAKO MT4-200 4-Spindle CNC Turning Center
Stock Number K13337
|
|
|
ACTUAL PHOTOS
|
KITAKO 4-SPINDLE CNC HORIZONTAL
TURNING CENTER

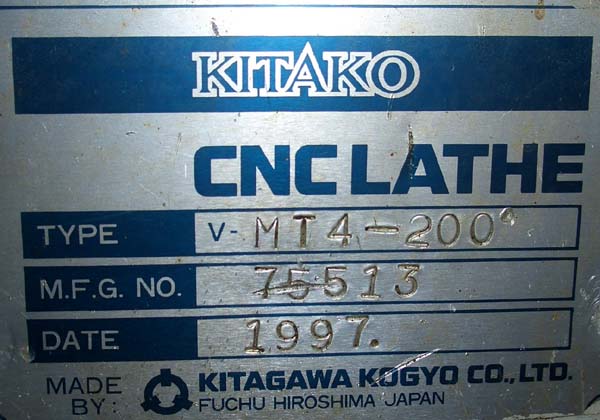

Model MT4-200, New 1997, S/N 75513
Stock# K13337
EQUIPPED WITH:

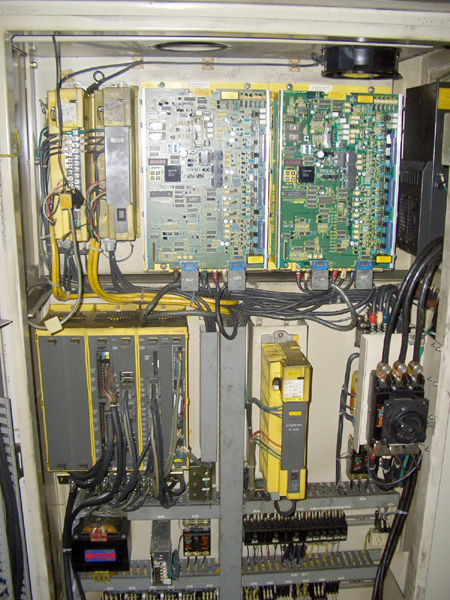

Fanuc 18T CNC Control, RS-232 Port, Background Edit, (4) Spindle
Design with (2) in the Machining Area and (2) in Load Position, Separate
Drive for Each Spindle, (4) 8" 3-Jaw Kitagawa Power Chucks, Hydraulic
Actuators on all (4) Spindles for Chucks or Hydraulic Clamping.
(2) 8 Position Tool Turrets,
Conveyor and Coolant System.
CATALOGUE SPECIFICATIONS:
Number of Spindles...................................... 4
Chuck Size.............................................. 8"
Max Turning Diameter with Standard Tools................ 7.9"
Max Turning Length...................................... 6.3"
X-Axis Stroke........................................... 6.7"
Z-Axis Stroke........................................... 9.84"
Rapid Traverse X-Axis................................... 1181 IPM
Rapid Traverse Z-Axis................................... 1181 IPM
Spindle Nose............................................ A2-6
Spindle Speeds.......................................... 50 - 4000 RPM
Spindle Motor........................................... 20 HP
Approximate Machine Dimensions.......................... 106" x 78"
Approximate Machine Height.............................. 85"
Approximate Machine Weight.............................. 17,500 LBS
! Appears To Be in Very Good Condition! |
|
 |
|
