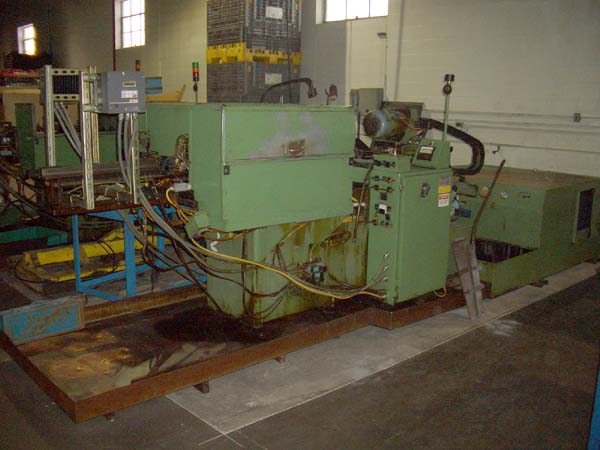

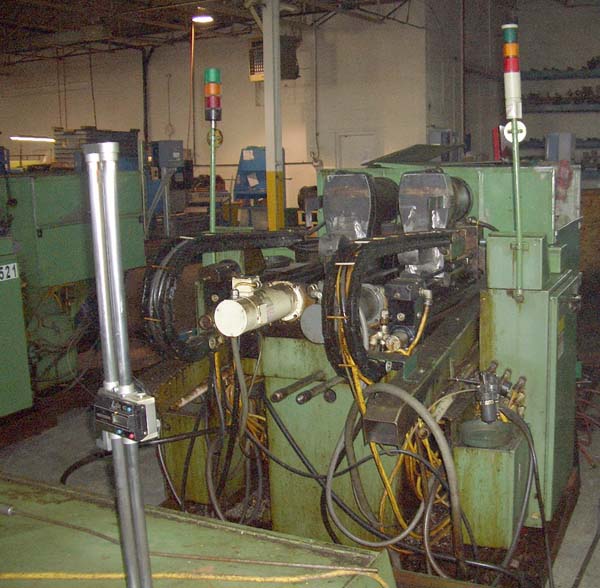

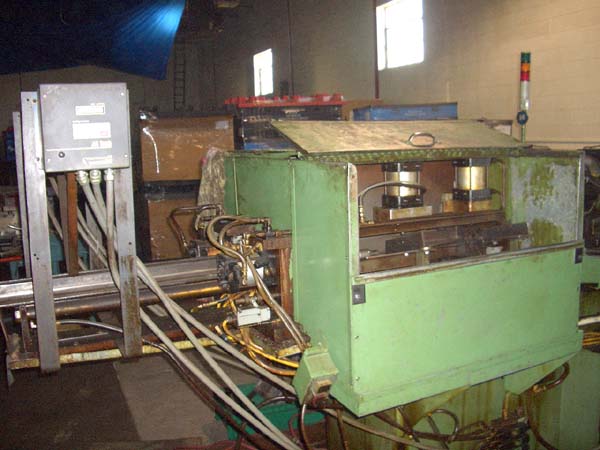

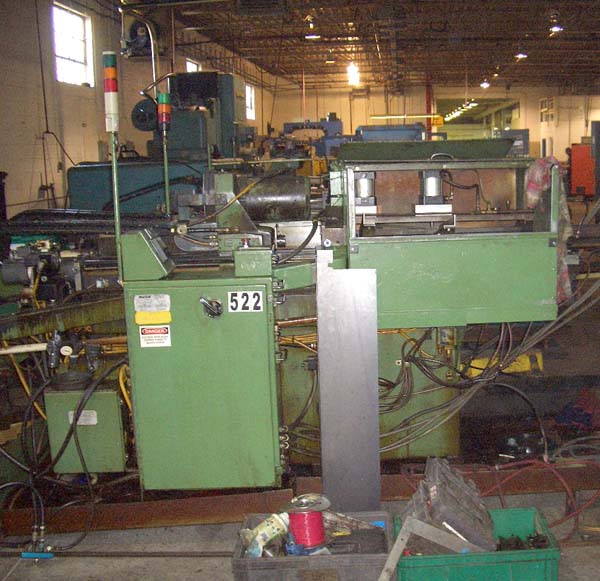

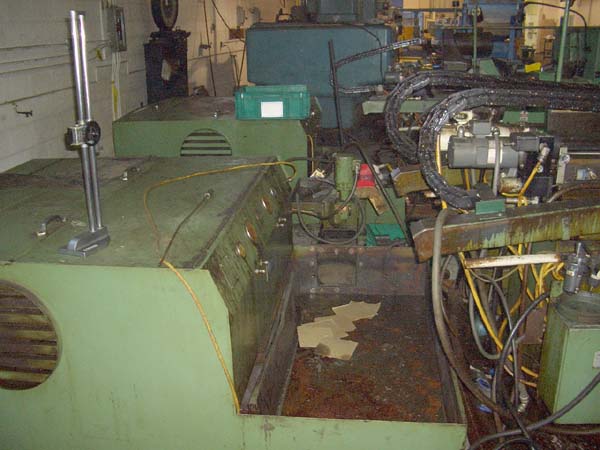

ELDORADO 2 SPINDLE PRECISION
HORIZONTAL GUN DRILL

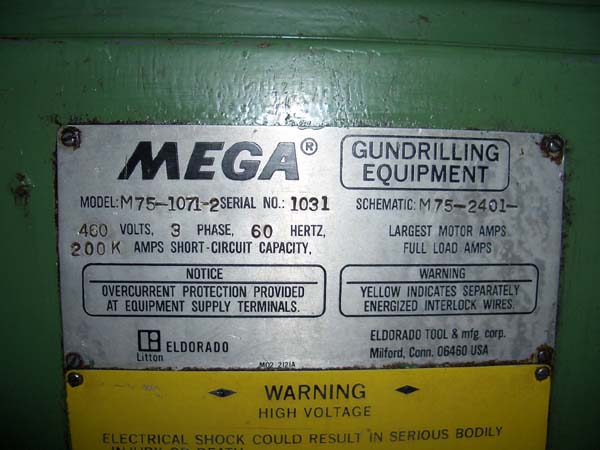

Model M-75-1071-2, New 1988, Stock# K13338
EQUIPPED WITH:
Precision Ball Screw Feed, Hardened
and Ground Square Ways, (2)

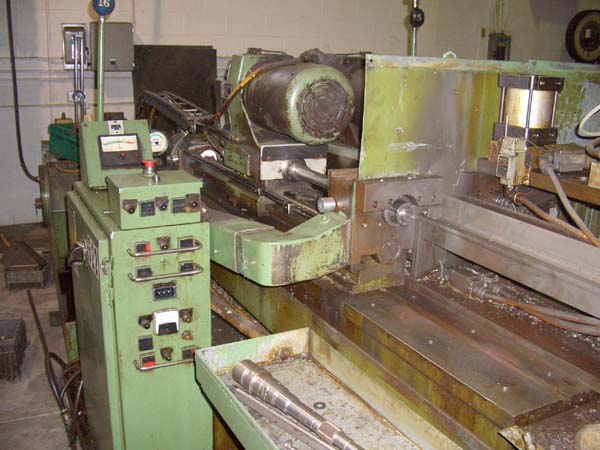

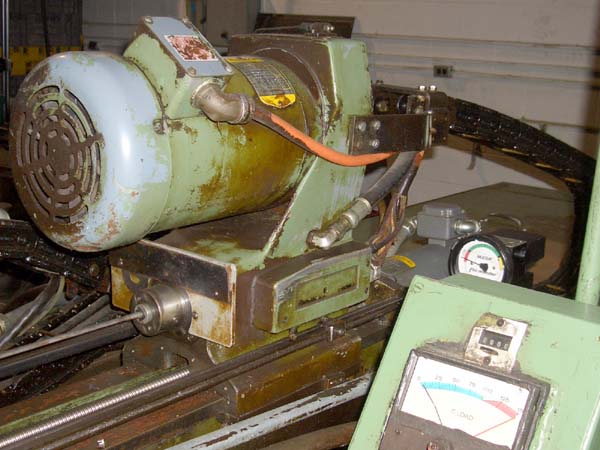

Flo-Minder Coolant Monitors, Feed Thrust Meters, Pendent
Control,
Automatic Lubrication System, Coolant System
CATALOGUE SPECIFICATIONS:
Working Surface of
Table.......................... 15" x 22" each
Drilling Capacity (Solid Mild Steel).............. 3/4" Maximum
Drill Head Stroke................................. 30" Maximum
Infinitely Variable Feed.......................... .1 - 100 IPM
Rapid Travers..................................... 200 IPM
Spindle Horsepower................................ 2 HP each
Spindle Speeds (18)............................... 1445 to 7500
RPM
Electrics......................................... 460/3/60
Coolant System Horsepower......................... 7.5 HP
Coolant system Operating Pressure................. 1500 PSI
Coolant System Flow............................... 18 GPM
Approximate Machine Dimensions.................... 70" x 96"
Approximate Machine Height........................ 60"
Approximate Machine Weight........................ 6,000 lbs
CONDITION: Appears to be in Very
Good Condition !
