OKUMA CAPTAIN "Big Bore" L-370 CNC
TURNING CENTER
Model 780-BB, New 2002, Stock# K143123
EQUIPPED WITH:
Okuma E100L CNC Control w/CRT, One Touch IGF
Programming System, 3.15"
Big Bore Spindle Bore Option, Tool Life Management, Touch Setter,

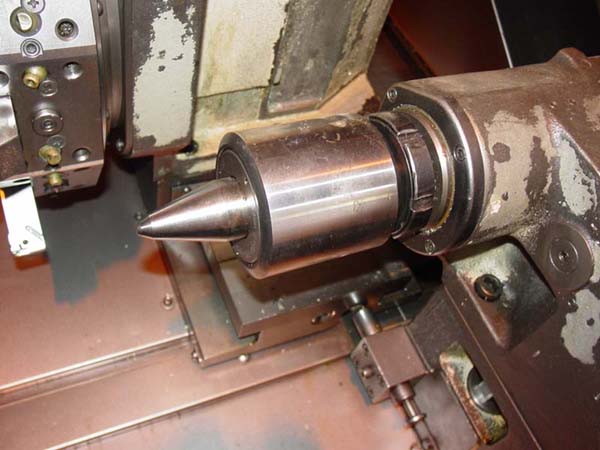

Circular Interpolation, Bed Mounted Programmable Tailstock,

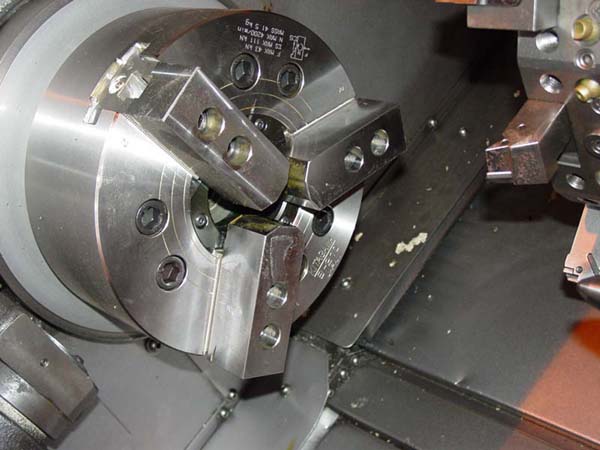

Brand New 10" 3-Jaw Kitagawa Chuck, Live Center, Auto Backlash

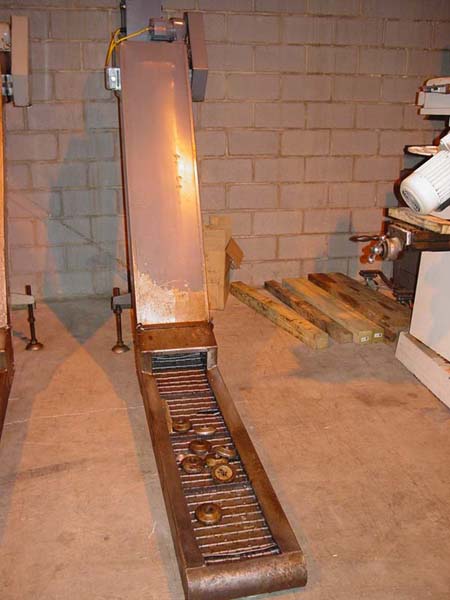

Compensation, Coolant System, and Chip Conveyor.
CATALOGUE SPECIFICATIONS:
Max Swing Over Bed...................................... 20.08"
Maximum Turning Diameter................................ 14.56"
Maximum Turning Length.................................. 20.47"
Chuck Size.............................................. 10"
Cross Travel (X-Axis)................................... 10.23"
Longitudinal Travel (Z-Axis)............................ 20.47"
Feed Range (Infinitely Variable)........................ .1-400 IPM
Rapid Traverse Rate (X-Axis)............................ 787 IPM
Rapid Traverse Rate (Y-Axis)............................ 984 IPM
Number of Turrets....................................... 1

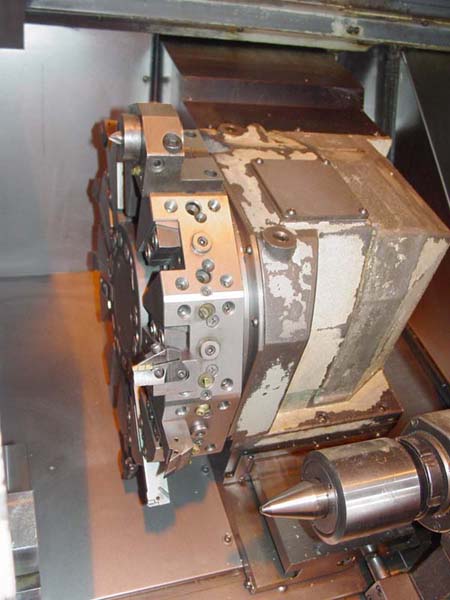

Tool Positions.......................................... 12 Total
Spindle Bore............................................ 3.15"
Spindle Nose............................................ A2-8
Spindle Speed Range (1 RPM Increments).................. 75-3800 RPM
Spindle Horsepower...................................... 20 HP
Approximate Machine Dimensions.......................... 104" x 73"
Approximate Machine Height.............................. 69"
Approximate Machine Weight.............................. 9,000 LBS
CONDITION: Machine Appears to be in Very Good Condition !!
