DAEWOO DMV3016d CNC VERTICAL MACHINING CENTER
Model DMV3016d, S/N AV4E0290, New 4/2004
Stock# K13362
EQUIPPED WITH:

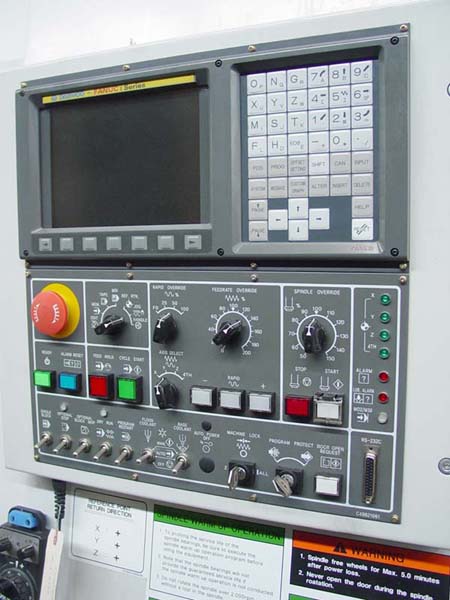

FANUC 0iM-B CNC Control w/CRT, Rigid Tapping G84 and G74, Metal Way
Covers, 20 Station Automatic Tool Changer, Load Meter, Automatic Lube
System, Work Light, Mirror Image Function, Background Edit, MPG
Pendent, With Full Chip-Splash Enclosure, Coolant System.
CATALOGUE SPECIFICATIONS:
Table Working Surface............................. 39.4" x 17.7"
Table Load Capacity............................... 1332 LBS
Longitudinal Travel (X-Axis)...................... 32"
Cross Travel (Y-Axis)............................. 16"
Vertical Travel (Z-Axis).......................... 20"
Table Top to Spindle Nose......................... 5.9" - 26"
Rapid Traverse Rate, All Axes..................... 1181 IPM
Tool Storage Capacity............................. 20
Spindle Horsepower................................ 20 HP
Spindle Speeds Range.............................. 0-8,000 RPM
Spindle Taper..................................... No. 40 CAT
Electrics......................................... 230/3/60
Approximate Machine Dimensions.................... 117" x 95"
Approximate Machine Height Max.................... 108"
Approximate Machine Weight........................ 12,400 LBS
CONDITION: Machine is from a Lab ! Hardly any run time.
In Like New Condition !
