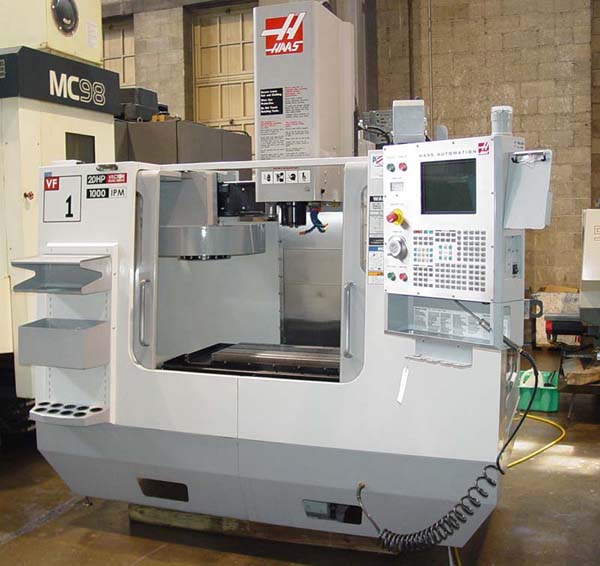

HAAS VF-1 CNC VERTICAL MACHINING CENTER
Model VF-1, S/N 43739, New 9/2005
Stock# K13363
EQUIPPED WITH:

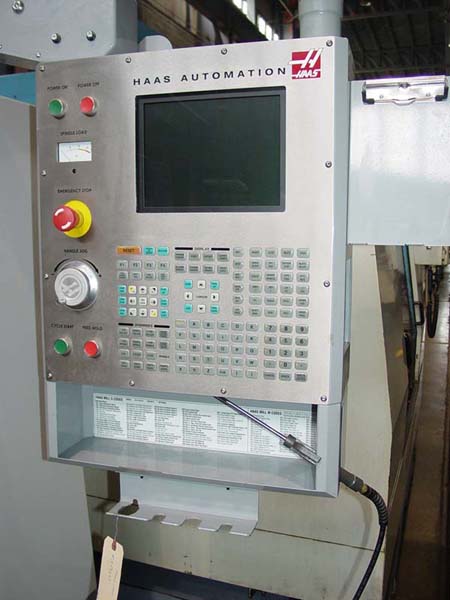

HAAS CNC Control w/CRT, 7,500 RPM 20HP Dual Vector Spindle Drive,

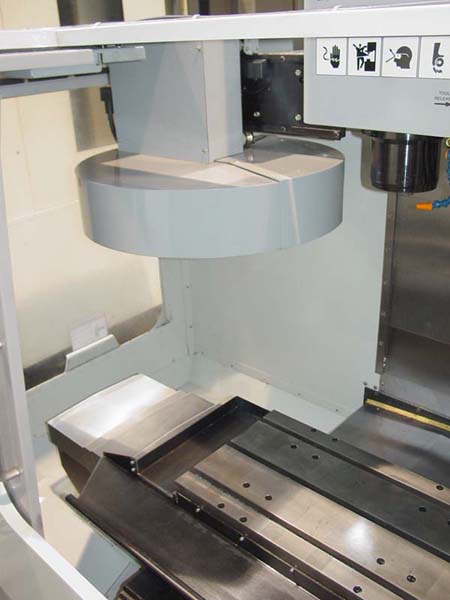

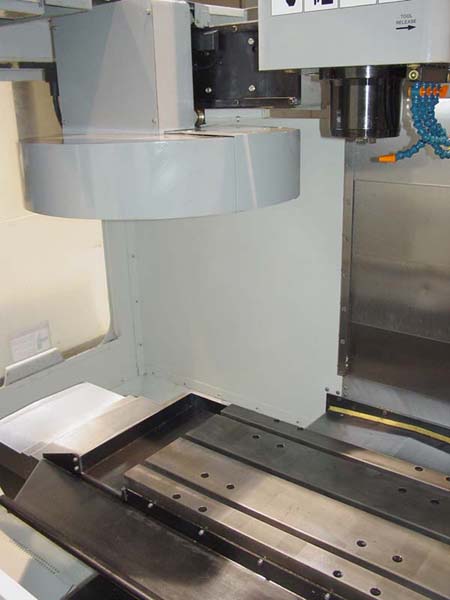

Graphics, Rigid Tapping, Metal Way Covers, 20 Station Automatic Tool
Changer, Load Meter, Automatic Lube System, Work Light, Full
Chip-Splash Enclosure, Coolant System.
CATALOGUE SPECIFICATIONS:

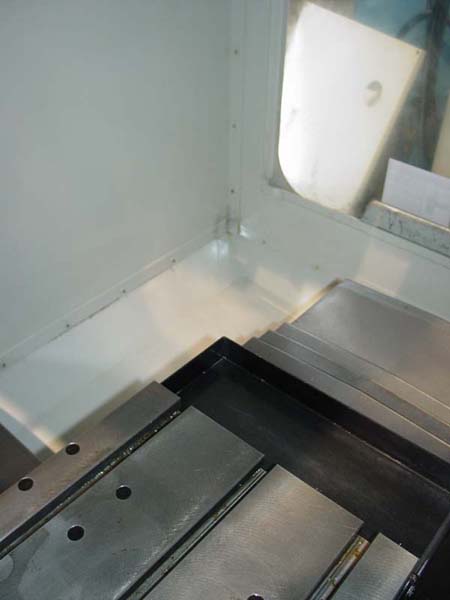

Table Working Surface............................. 14" x 26"
Longitudinal Travel (X-Axis)...................... 20"
Cross Travel (Y-Axis)............................. 16"
Vertical Travel (Z-Axis).......................... 20"
Table Top to Spindle Nose......................... 4" - 24"
Feed Rates, All Axes.............................. 0 to 650 IPM
Rapid Traverse Rate, All Axes..................... 1000 IPM
Tool Storage Capacity............................. 20
Spindle Horsepower................................ 20 HP
Spindle Speeds Range.............................. 0-7500 RPM
Spindle Taper..................................... No. 40 CAT
Electrics......................................... 230/3/60
Approximate Machine Dimensions.................... 88" x 95"
Approximate Machine Height Max.................... 104"
Shipping Height................................... 92"
Approximate Machine Weight........................ 7,400 LBS
CONDITION: Machine is from a Lab ! Hardly any run time.
In Like New Condition !
