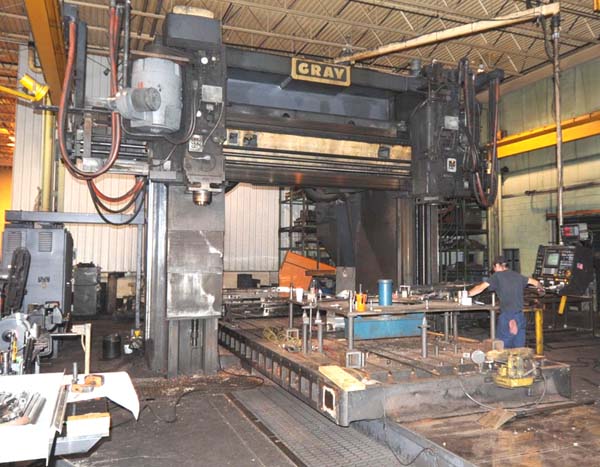

104" x 30' TABLE GRAY DBL COLUMN PLANER MILL,
RETROFIT 1988 Stock# K13368
Catalog Specifications:
Distance between housings 115"
Rail to table top 95"
Taper NMTB #50
Spindle speeds 625 rpm
Spindle motors 75 hp DC

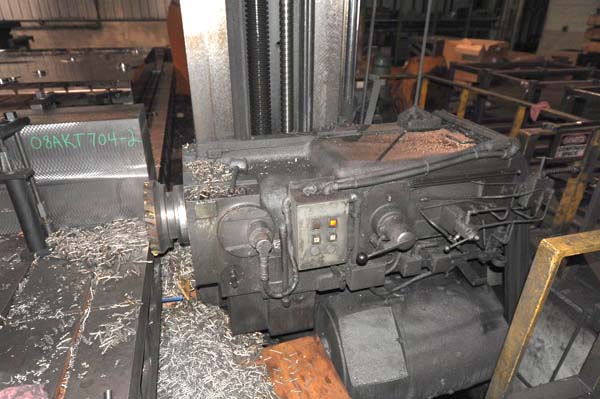

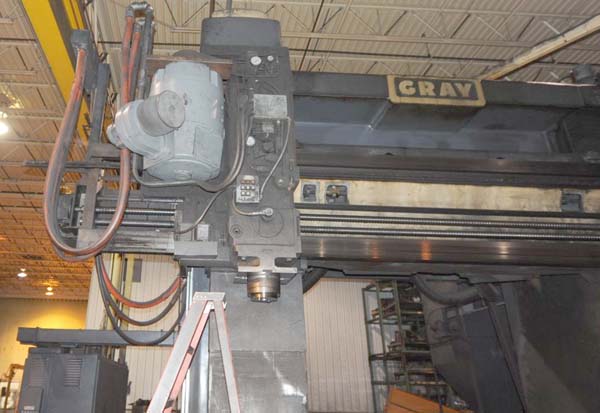

Configured with left and right vertical heads on rail (right head missing
drive motor) and right hand side head

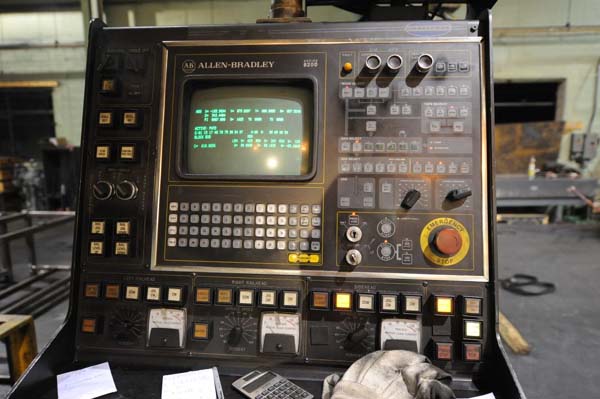

Allen Bradley 8200 cnc controls table feed, right head, left
head, and side head feeds.
Retrofitted with Allen Bradley controls in 1988
Power vertical adjustment of bridge
Manual quill advance on side head
Accurate digital readouts for rail position with self leveling
AS IS, WHERE IS, WEST MICH PLANT SITE
