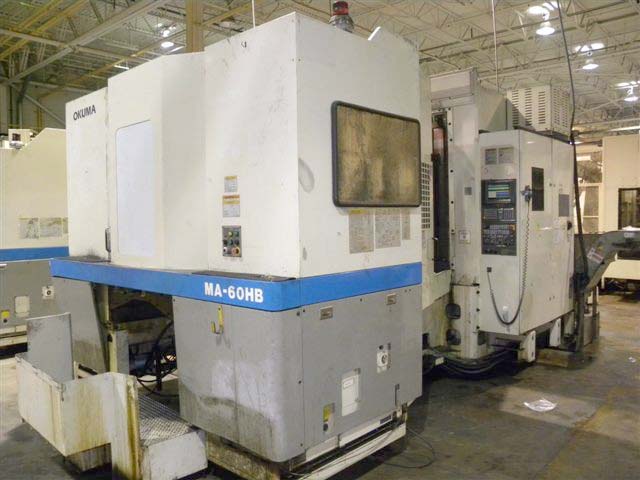

OKUMA MA-60HB CNC HORIZONTAL
MACHINING CENTER
Model MA-60HB, New 2001, Stock # K13369
EQUIPPED WITH:

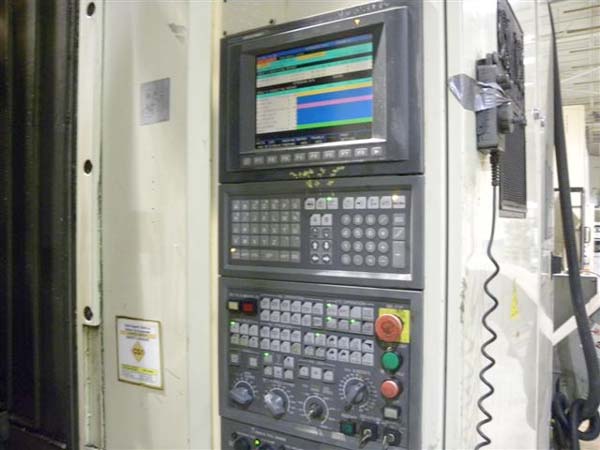

Okuma OSP U100M CNC Control, Tool Life Management, Cycle Time Reduction,
Synchronized Tapping, Helical Cutting, (2) 24.8" x 24.8" Pallets,
1 Degree Indexing Pallet Rotation, 60 Station Automatic Tool Changer,
Full Coolant Enclosure, 5000 RPM Spindle, Tool Breakage Detection,
Thru-the-Spindle Coolant, Chip Conveyor and Coolant System.
CATALOGUE SPECIFICATIONS:
Longitudinal Travel (X-Axis) ........................... 39.37"
Vertical Travel (Y-Axis) ............................... 31.5"
Spindle Travel (Z-Axis) ................................ 31.89"
Pallet Dimensions ...................................... 24.8"x 24.8"
Number of Pallets ...................................... 2
Number of Index Positions............................... 360
Feed Rate, All Axes .................................... .1-1572 IPM
Rapid Traverse, All Axes ............................... 1572 IPM
Spindle Horsepower...................................... 40 HP
Spindle Speed Range (2 Range)........................... 20-5,000 RPM
Spindle Taper .......................................... #50 Taper
Number of Tool Stations ................................ 60
Electrics .............................................. 460/3/60
Approximate Floorspace Dimensions ...................... 210" x 301"
Approximate Machine Height ............................. 108"
Approximate Machine Weight ............................. 32,000 LBS
CONDITION: Appears to be in Very Good
Condition!
