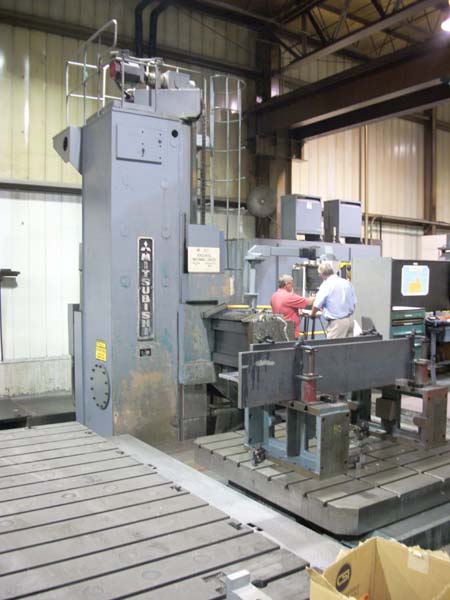

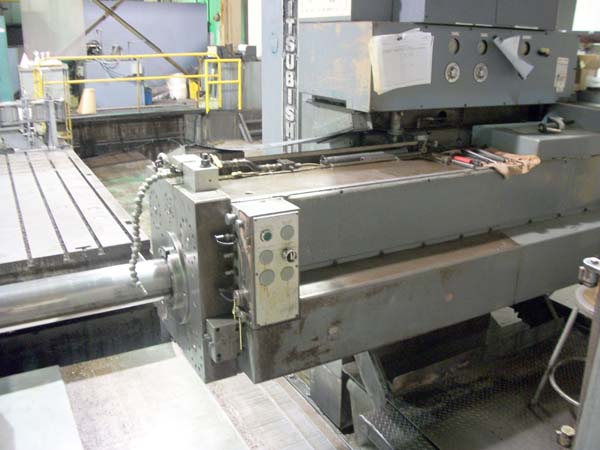

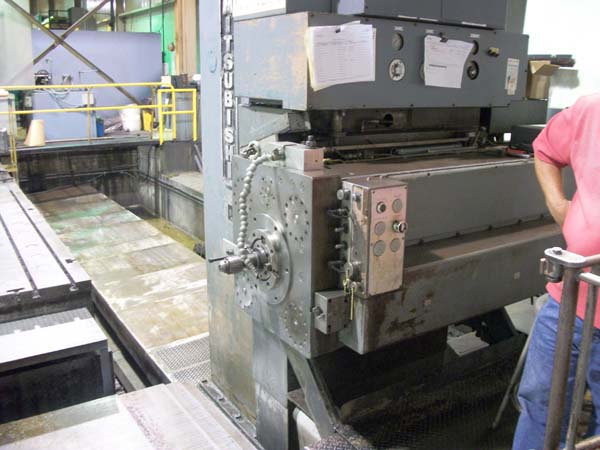

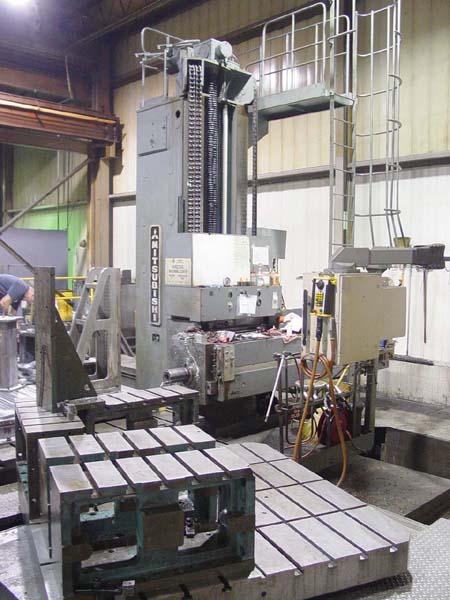

6" MITSUBISHI CNC FLOOR TYPE HORIZONTAL BORING MILL
Model
MAF RS150, New 1989, Stock# K13370
EQUIPPED WITH:

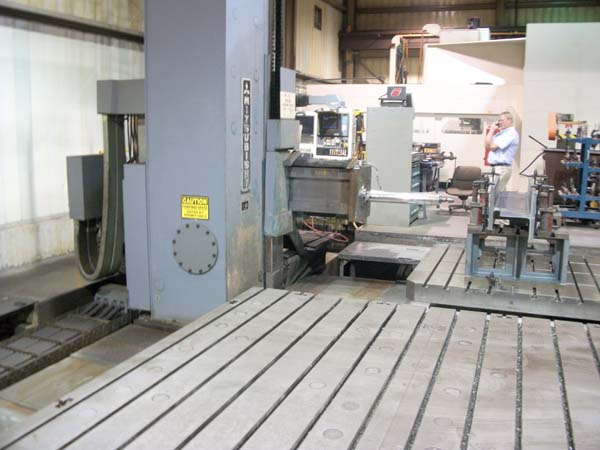

FANUC 15MA CNC Control, 207" x 237" T-Slotted Floor Plate,
78.74" x 78.74" Eimeldingen Full Contouring 4th Axis Rotary Table with 47"
W-Axis Travel, Heavy Duty -50 Taper Spindle, (3) Gear Ranges, Coolant
System.
CATALOGUE SPECIFICATIONS:
Spindle Diameter................................... 5.9"
Milling Spindle Diameter........................ 8.26"
Horizontal Column Travel (X-Axis)........................ 360"
Spindle-Head Vertical Travel (Y-Axis).............. 99"
Spindle (Quill) Travel (Z-Axis).................... 35.34"
Ram Travel
(V-Axis).................................... 27.55"
Table Travel Infeed (W-Axis)..................... 47"
Spindle Taper...................................... #50 CAT
Spindle Horsepower(30 min/cont).................... 40/30 HP
Spindle Speeds (Infinite in 3 ranges).............. 10 to 1400 RPM
Power Rapid Traverse (X & Y & Z Axes).............. 197 IPM
Power Rapid Traverse ( W Axes)..................... 197 IPM
Electrics........................................................ 460/3/50
Approximate Machine Dimensions..................... 577" x 167"
Approximate Machine Height......................... 218"
Approximate Machine Weight......................... 77,000 LBS
CONDITION: Machine Appears to be in Excellent Condition ! !
