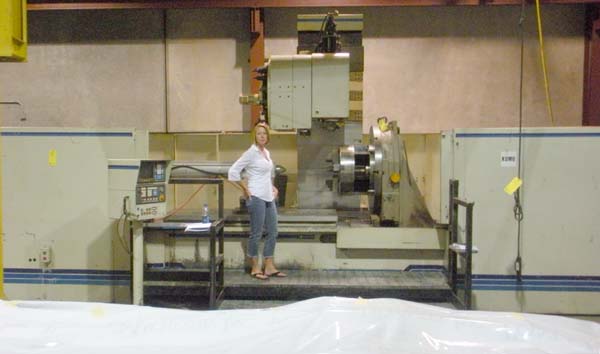

EQUIPPED WITH:

 Fanuc 0M Control, Multi Part Program Storage, Programmable Offsets,
RS-232 Data Line, Dual Set-up Table Positions with Partition, Feedback

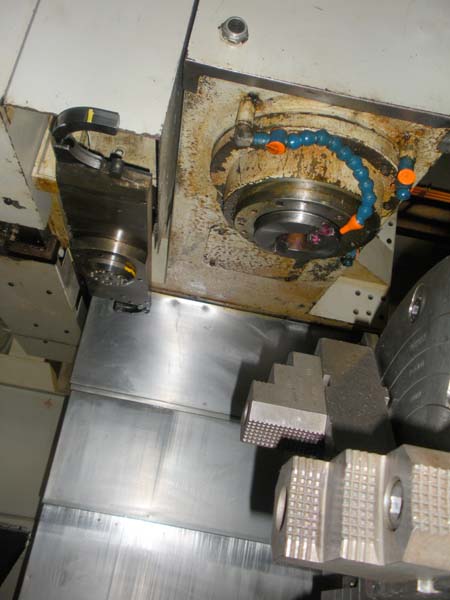

Scales, Helical Cutting, Heavy Duty Cat-50 Taper Spindle, 30 Station
Double Arm Tool Changer, 42" Troyke Model NC-42 4th Axis Rotary Table,

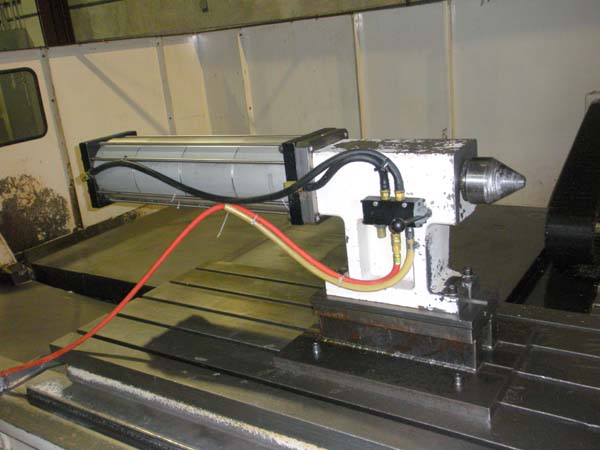

Hydraulic Tailstock, 24" 3-Jaw Chuck, 6.5" Hole thru Table, 83" Between

Rotary Table and Tailstock. Coolant System and Chip Conveyor.



CATALOGUE SPECIFICATIONS:

 Table Working Surface................................. 32" x 80"
Table Load Capacity................................... Unlimited
Longitudinal Travel (X-Axis).......................... 82"
Cross Travel (Y-Axis)................................. 32"
Vertical Travel (Z-Axis).............................. 32"
Feed Rates (X,Y,Z Axis)............................... .1 - 500 IPM
Rapid Traverse Rate (X & Y-Axis)...................... 600 IPM
Tool Storage Capacity................................. 30
Spindle Horsepower.................................... 25 HP
Spindle Speed Range................................... 0-6000 RPM
Spindle Taper......................................... #50 Cat
Electrics............................................. 460/3/60
Approximate Machine Dimensions........................ 273" x 116"
Approximate Machine Height............................ 129"
Approximate Machine Weight............................ 54,700 LBS



CONDITION: Machine Appears to be in Excellent Condition !

 Used buy Sanvik for Down Well Tooling and Heads.
