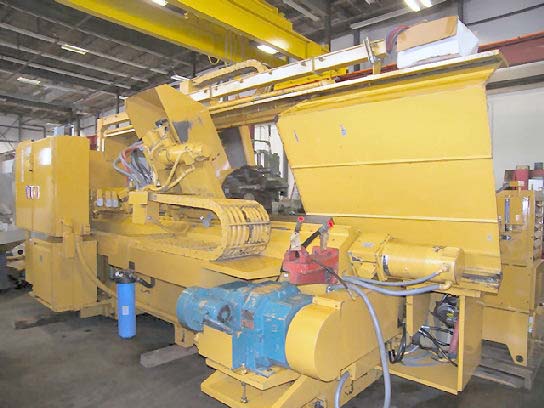

CINCINNATI 18Ux 80 CINTURN CNC SLANT BED LATHE
NEW: 1977 // RETROFITTED IN 1997
EQUIPPED WITH:

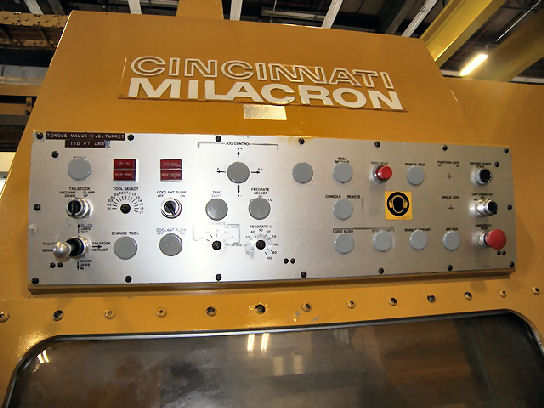

ACRAMATIC 2100 CNC CONTROL WITH CRT (RETROFIT)
TAILSTOCK
CHIP CONVEYOR
TURRET TOOLHOLDERS
COOLANT
MANUAL PULSE GENERATOR

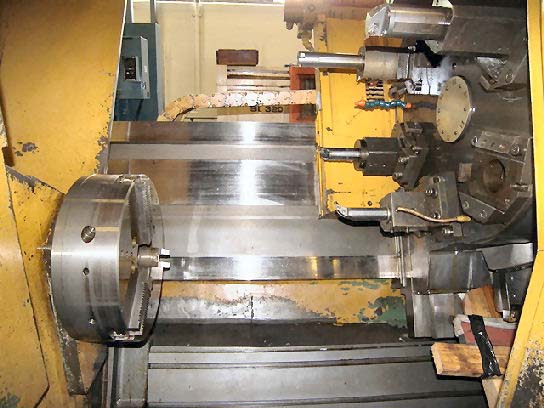

CHUCK SIZE.......................... 18"
SPINDLE BORE........................ 4.5"
HOLE THRU CHUCK..................... 4.125"
SPINDLE MOTOR....................... 50 HP
DISTANCE BETWEEN CENTERS............ 80"
SWING OVER THE SLANT BED............ 28"
SWING OVER THE CARRIAGE............. 18.25"

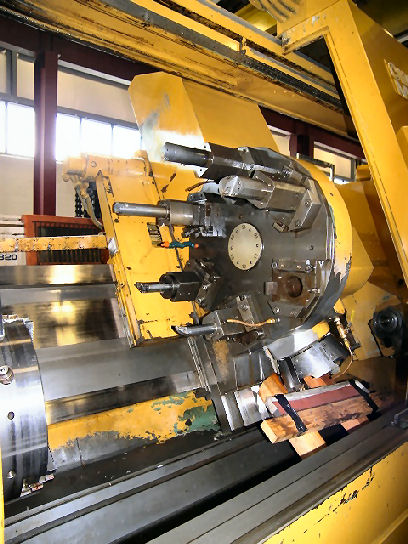

TURRETS............................. 2 - 6 ID/6 OD
SPINDLE SPEEDS...................... 16 - 1600 RPM
SPINDLE NOSE........................ A1-11
FROM LARGE AEROSPACE COMPANY
VERY GOOD CONDITION
