32" x 360" LeBlond Flat Bed CNC
Lathe
Model Tape Turn, New 1980/Retrofit 1999
.
Equipped With:

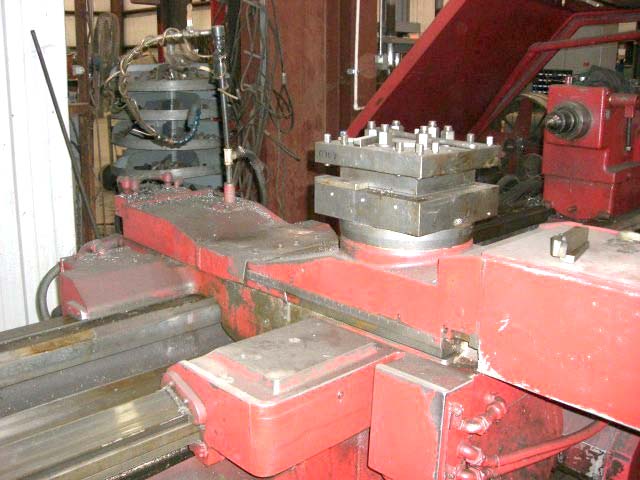

Fanuc OTC CNC Control, 4 Position Power Indexing Toolpost,
Steady Rest,
Chip Conveyor, 24 4 Jaw Chuck, Manuals & Misc Tooling
Specifications:
Chuck Diameter
..24
Swing Over Bed
.32
Swing Over Cross Slide...................26"
Turning Length
.. 360
Rapid Traverse X&Z
..400 IPM
Spindle Nose
..D1-11
Spindle Bore
...4.375
Spindle Speeds
..7 - 1075 RPM
Motor
.50 HP
Tailstock Quill Taper
MT#5
Tailstock Quill Diameter
..5
Tailstock Travel
..72.5
Approximate Weight
.46,000 LBS
CONDITION:
Machine Appears to be in Very Good Condition.
