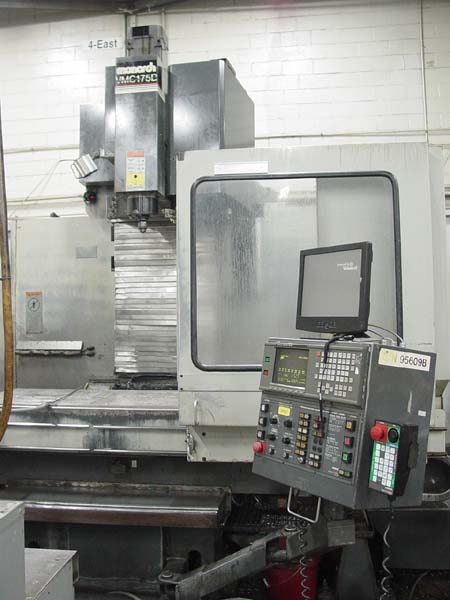

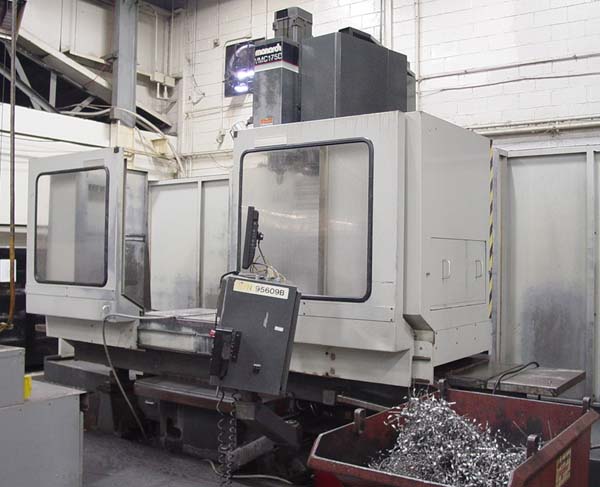

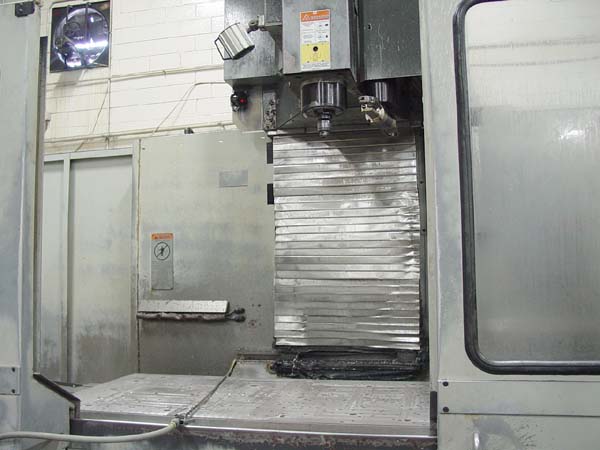

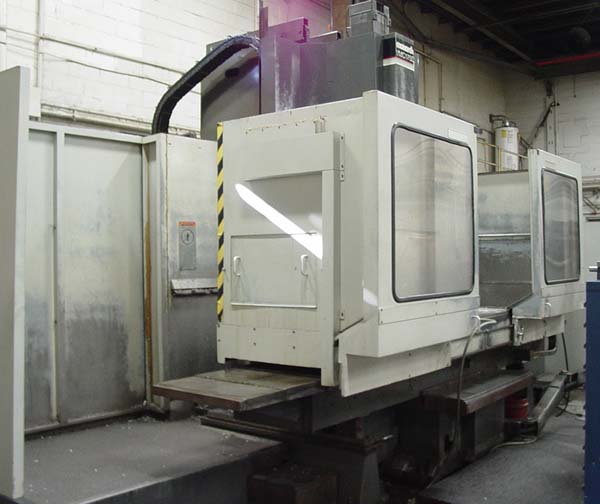

MONARCH VMC 175 B Vertical Machining Center
Model VMC175, Stock# K13412
EQUIPPED WITH:
Fanuc 16M CNC Control, Multiple Part Program Storage.
High Pressure (1000 psi / 5 gpm) Thru Spindle Coolant, 30 Station
Automatic Tool Changer, Renishaw Part Probe,
HPM 12” Diameter Full Contouring Fourth Axis Rotary Table,
Chip Auger and Coolant System.
CATALOG SPECIFICATIONS:
Table
Size...........................................................84.5" x
30"
Table Cross Travel (X-Axis).......................76”
Vertical Spindle Travel (Z-Axis).................44”
Table Longitudinal Travel (Y-Axis)............30”
Distance from Table Top to Spindle............5” - 49”
Maximum Table Load (Even).....................6000 lbs.
Spindle Taper..............................................CAT 50
Spindle Speeds............................................30 - 6000 rpm
Spindle Motor..............................................25 / 30 hp.
Rapid Traverse.............................................600 in/min
Cutting Feeds (X,Y,Z)..................................0.01-400 in/min
Automatic Tool Changer
Number of Tools...........................................30
CONDITION: In a High Precision plant under
power. Appears
to be in very good condition.
