5.5" x 31.5" WERAG CNC DOUBLE-END
FACING
& CENTERING MACHINE
New 1995, S/N 0999-0943, Model DZ111-QS-W-08-800
EQUIPPED WITH:
Siemens Sinumerik 840C CNC Control w Color Graphics

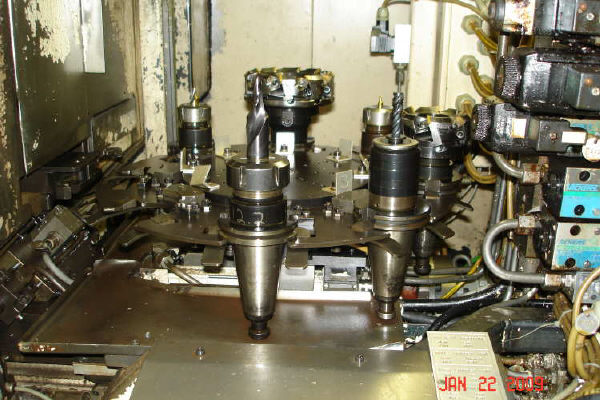

(2) 8 Tool Automatic Tool Changers (1 Each Side)
Self Centering Automatic Vises
Chip Conveyor - Automatic Lube System
Coolant Thru Spindle - Large Assortment of Tooling
CATALOGUE SPECIFICATIONS:
Work Diameter Capacity, Minimum........ 0.3937"
Work Diameter Capacity, Maximum........ 5.512"
Work Length Capacity, Minimum.......... 3.15"
Work Length Capacity, Maximum.......... 31.5"
Vise Clamping Range.................... 0.3937" to 5.906"
Spindle Tapers......................... #SK45
Max. Tool Length....................... 12.4"
Max. Tool Weight....................... 22 LBS.
Spindle Speeds, Range.................. 50 to 3695 RPM
Max. Travel per Spindle, Z-Axis........ 15.75"
Max. Travel per Spindle, X-Axis........ 5.906"
Feed Rate, Z-Axis...................... 0 to 0.5906 IPM
Feed Rate, X-Axis...................... 0 to 0.2953 IPM
Rapid Traverse Rate, Z-Axis............ 590.6 IPM
Rapid Traverse Rate, X-Axis............ 295.3 IPM
Spindle Motors......................... 10 HP
Overall Dimensions, L x W.............. 17'9" x 7'7"
Overall Height......................... 7'11"
Weight, Approximately.................. 26,460 LBS.
