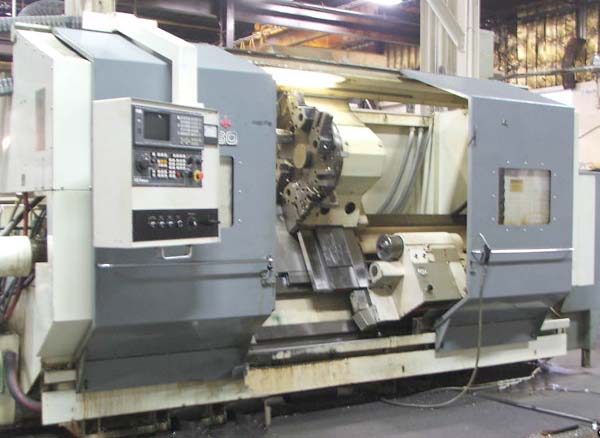

LeBlond Barron 60 Heavy Duty CNC
Turning Center
New 1986 Rebuilt and Retrofit by LeBlond in 2002, Stock## K13415
Equipped With:

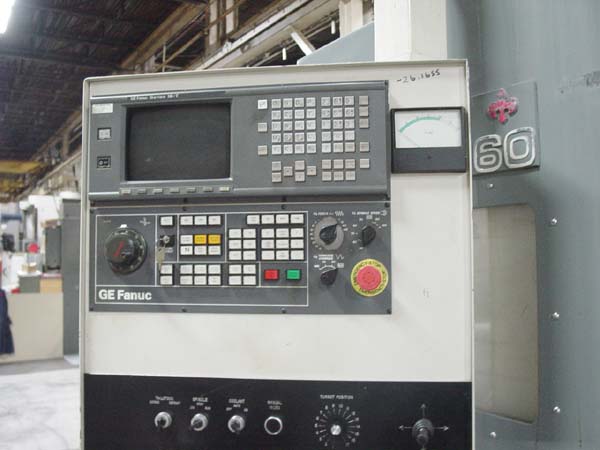

Fanuc 18T CNC Control, RS-232 Port, Multiple Part Program Storage, 18"
3-Jaw

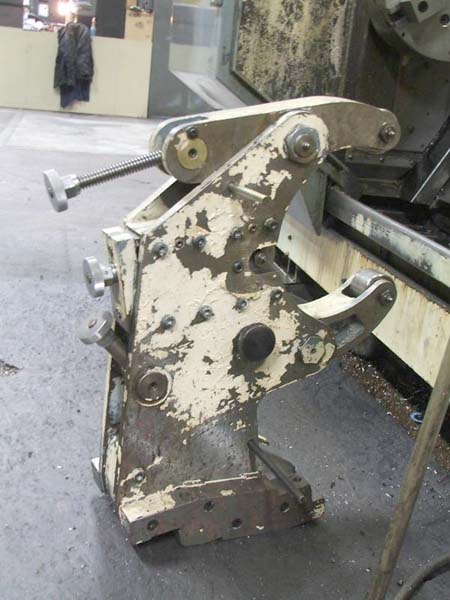

Power Chuck, Heavy Duty 60 HP Spindle, Turn Thru Steady Rest,
12 Position Tool Turret, Chip Conveyor and Coolant System.
Catalog Specifications:
Max. Swing Over Bed
27"
Max. Swing Over Carriage
20"
Max. Turning Length
.72"
Hole Through Spindle.................................4.62 (43" deep)
Spindle Nose...............................................A1-11
Spindle Speeds............................................25 - 2000 rpm
Spindle Ranges............................................3 Steps
Spindle Motor..............................................50 / 60 hp.
Rapid Traverse.............................................400 in/min
Cutting Feeds
...........................
.0.01-200 in/min
Available Mix of ID/OD Tools
..6/6, 5/7, or 4/8
Max. Diameter of ID Tools
2.5
OD Tool Shank Size
..1.5x1.5x6.0
Condition: Appears to be in very good condition !
