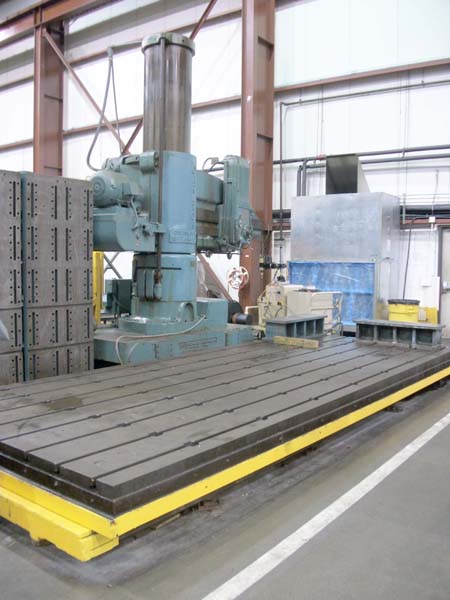

10' x 26" CARLTON TRAVELING BASE RADIAL
DRILL
Model 4A, New 1952, Stock # K13418
EQUIPPED WITH:
96" x 172" T-Slotted Floor Plate, Power
Elevation, Power Clamping on
Arm, Power Clamping on Head, Rapid Traverse on Head, Tapping.
CATALOGUE SPECIFICATIONS:
Arm Length............................................ 10'
Column Diameter....................................... 26"
Working Surface of Base (T-Slotted)................... 96" x 175"

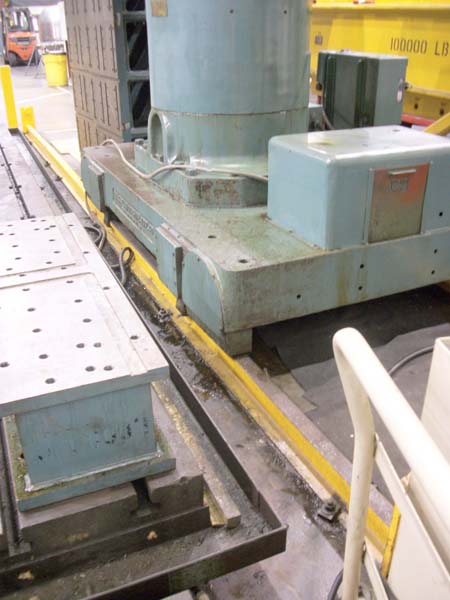

Travel of Column on Rails............................. 172"
Vertical Spindle Travel in Head....................... 24"
Vertical Travel of Horiz Arm on Column................ 56"
Horizontal Head Travel on Arm......................... 92"
Drills to Center of Circle on Base.................... 138"
Distance Spindle to Base, Maximum..................... 78"
Distance Spindle to Base, Minimum..................... 10-1/2"
Face of Column to Spindle, Maximum.................... 120"
Face of Column to Spindle, Minimum.................... 16.5"
Spindle Taper......................................... #6 MT
Spindle Diameter...................................... 4"
Spindle Speeds........................................ 15 to 1500 RPM
Spindle Feeds......................................... .001 to .125 IPM
Tapping Leads......................................... 8 to 18 TPI
Motor................................................. 20 HP
Electrics............................................. 220/440/3/60
Approximate Machine Height ........................... 10'10"
Approximate Machine Weight............................ 50,500 LBS
CONDITION: Appears to be in Very Good Condition !
