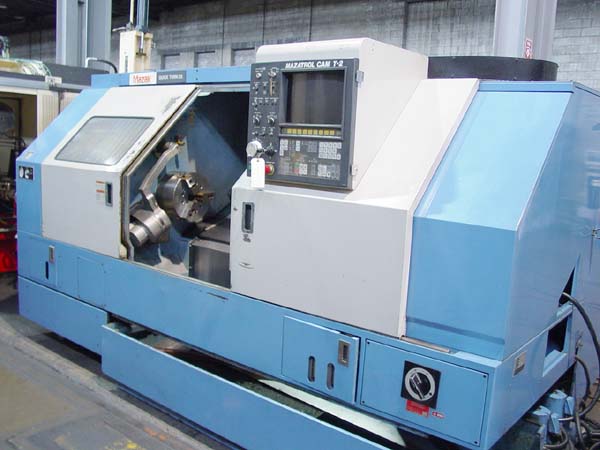

MAZAK QUICK TURN 35N UNIVERSAL CNC TURNING
CENTER
Model Quick Turn 35N, New 1987, S/N 71403
Stock# K13435
EQUIPPED WITH:
Mazatrol CAM T-2 CNC Control with Color
Graphics, Mazatrol
Conversational Programming, Swing Down Tool Eye, 12" 3-Jaw
Hydraulic Chuck, Heavy Duty 30 HP Spindle Drive, Programmable Tailstock,
24 Position ID/OD Tool Turret, Chip Conveyor and Coolant System.
CATALOGUE SPECIFICATIONS:
Swing over Slant Bed ................................. 20"
Swing over Carriage................................... 15.75"
Standard Chuck Diameter............................... 12"
Cross Travel (X-Axis)................................. 11"
Longitudinal Travel (Z-Axis).......................... 41.3"
Maximum Part Length Between Centers................... 40"
Feed Range (Infinitely Variable) ..................... .1 to 709 IPM
Rapid Traverse Rate .................................. 472 IPM
Number of Turrets..................................... 1
Tool Positions (Maximum).............................. 24
Spindle Bore.......................................... 3.15"
Spindle Nose.......................................... A2-8
Spindle Speed Range................................... 23-3000 RPM
Spindle Drive Motor .................................. 30 HP
Electrics ............................................ 460/3/60 AC
Approximate Machine Dimensions........................ 140" x 85"
Approximate Machine Height............................ 82"
Approximate Machines Weight........................... 13,000 LBS
CONDITION: Appears to be in Very Good !
