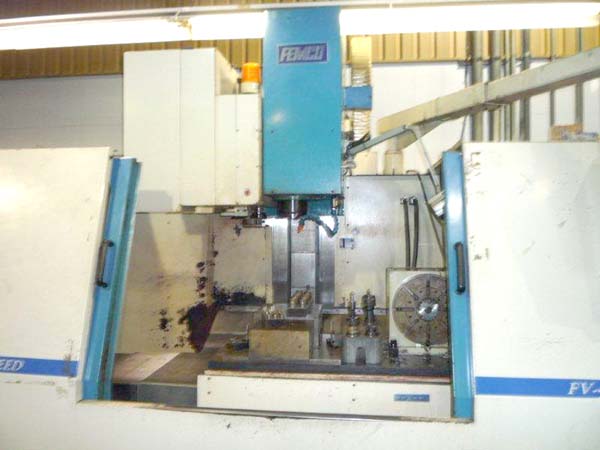

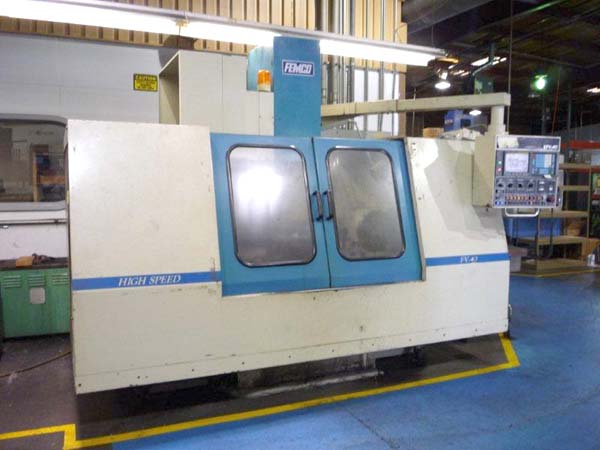

FEMCO KFV-40 CNC VERTICAL MACHINING CENTER
                     New 1995, S/N 013012 Stk# K13436



EQUIPPED WITH:



Fanuc OM CNC Control, Multiple Program Storage, 4th Axis Prewire

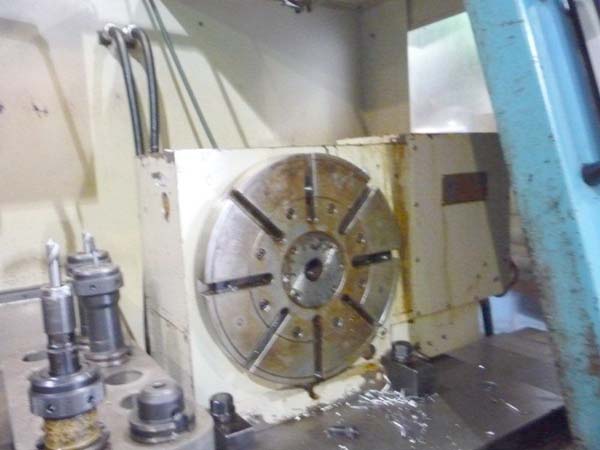

Including Axis Drive and 12" Full Contouring 4th Axis Rotary Table,
Heavy Duty Box Way Construction, Rigid Tapping, RS-232 Port, 24 Station
Double Arm Automatic Tool Changer, Full Coolant
Enclosure, Chip Conveyor and Coolant System.

CATALOGUE SPECIFICATIONS:



X Travel (Longitudinal)............................... 43.3"
Y Travel (Cross)...................................... 22"
Z Travel (Vertical)................................... 23.8"
Table Working Surface................................. 51.2"x 21.5"
Table Work Load Capacity.............................. 2500 LBS
Spindle Horsepower.................................... 20/15 HP
Spindle Speeds........................................ 70-9000 RPM
Spindle Taper......................................... CAT 40
Feed Rates, X & Y..................................... 0.1 to 480 IPM
Feed Rate, Z.......................................... 0.1 to 480 IPM
Rapid Traverse X & Y.................................. 590 IPM
Rapid Traverse Z...................................... 480 IPM
Tool Storage Capacity................................. 24
Approximate Dimensions................................ 139" x 88"
Approximate Height.................................... 96"
Approximate Weight.................................... 15,400 LBS



CONDITION: Machine appears to be in Excellent Condition !
